  6. Pin & Sleeve Inlet, 30 A, 600V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X

This item is Discontinued.

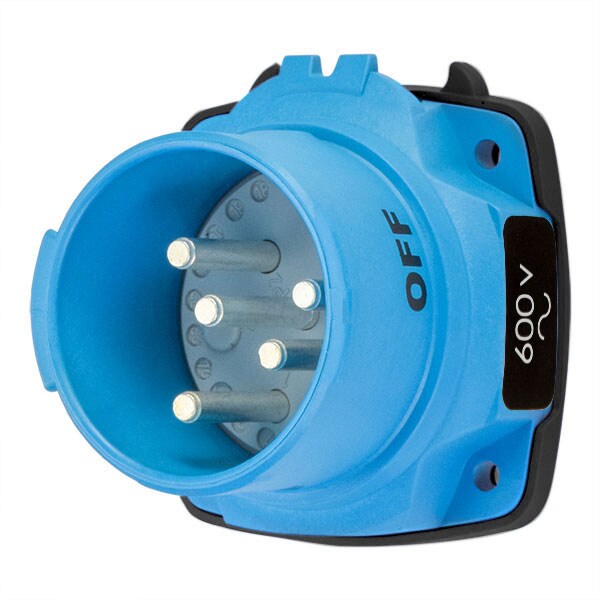

Meltric Pin & Sleeve Inlet, 30 A, 600V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X 63-38142-972-A155

Pin & Sleeve Inlet, 30 A, 600V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X (Discontinued)

  • Mfr # 63-38142-972-A155
  • Zoro # G601756549
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-38142-972-A155
Zoro #
G601756549
UPC #
784474015066
Country of Origin
United States

Dimensions

Wire Size
14 AWG to 14 AWG; 14 AWG to 8 AWG
Wire Strip Length
Auxiliary: 3/4 in (19 mm); Phase: 3/4 in (19 mm)
Use With Installation Accessory Size
2

Details

Item
Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
600V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Switch Rated
Yes
Body Material
Polyester
Use With
Mating Box MB3
HP
7.5
Color Code
Black
Number of Aux. Outputs
+2 AUX
Contact Configuration
2P+G
Operating Temp. Range
-40C to 60C
Terminal Connection
Screw
Wire Temperature Rating
60 Degrees C
Number of Notch Positions
24
Auxiliary Contact Voltage Rating
600VAC
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Auxiliary Contact Rating
1.2A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Impact Rating
IK08
Load Break Amp Rating
30A
Keying Position
14
Hz
60 Hz
Load Break Amp Rating_Abnormal Overload
45A

Description

DSN30 INLET POLY BLUE SIZE 2 TYPE 4X IP 69 2P+G 30A 600 VAC 60 Hz +2 AUX WITH NO LOCKOUT HOLE
