  6. Pin & Sleeve Receptacle, 100 A, 120/208V AC, Three Phase, 2 Pole, Style 2 Grounding, Blue, NEMA 4X

This item is Discontinued.

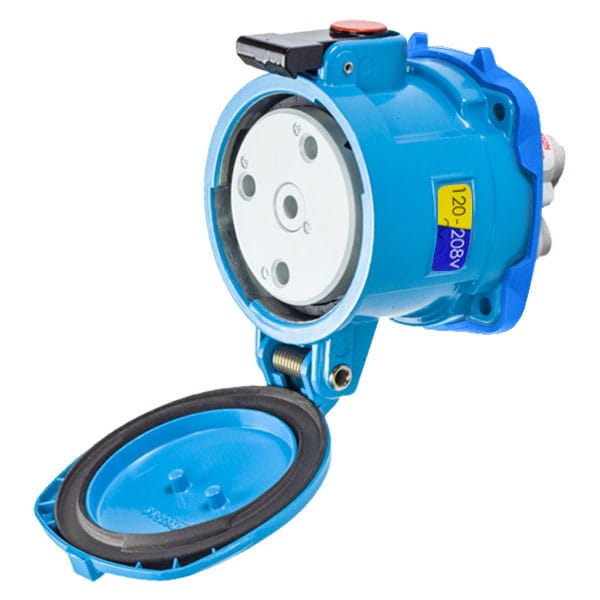

Meltric Pin & Sleeve Receptacle, 100 A, 120/208V AC, Three Phase, 2 Pole, Style 2 Grounding, Blue, NEMA 4X 39-64236-K16

Pin & Sleeve Receptacle, 100 A, 120/208V AC, Three Phase, 2 Pole, Style 2 Grounding, Blue, NEMA 4X (Discontinued)

  • Mfr # 39-64236-K16
  • Zoro # G501759183
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-64236-K16
Zoro #
G501759183
UPC #
784474657327
Country of Origin
United States

Dimensions

Wire Size
10 AWG to 2 AWG
Use With Installation Accessory Size
4
Wire Strip Length
Phase: 15/16 in (24 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Grounding Style
Style 2
Use With
Mating Box MB6
Body Material
Aluminum
Hz
60 Hz
Keying Position
23
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating
100A
Impact Rating
IK10
Color Code
Blue
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Number of Aux. Outputs
NO AUX
Wire Temperature Rating
60 Degrees C
Contact Configuration
2P+N+G
Number of Notch Positions
24
Operating Temp. Range
-40C to 60C
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DR100 RECEPTACLE METAL BLUE SIZE 4 TYPE 3R 2P+N+G 100A 120/208 VAC 60 Hz NO AUX
