  6. Pin & Sleeve Receptacle, 100 A, 208V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X

This item is Discontinued.

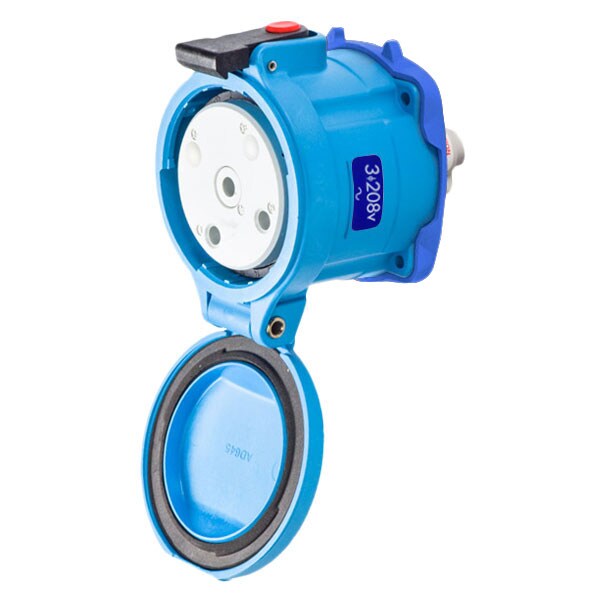

Meltric Pin & Sleeve Receptacle, 100 A, 208V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X 33-64232-C-K16-375

Pin & Sleeve Receptacle, 100 A, 208V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X (Discontinued)

  • Mfr # 33-64232-C-K16-375
  • Zoro # G001757337
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-64232-C-K16-375
Zoro #
G001757337
UPC #
784474018722
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
4
Wire Size
10 AWG to 2 AWG
Wire Strip Length
Phase: 15/16 in (24 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
208V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Body Material
Polyester
Use With
Mating Box MB6
HP
10
Hz
60 Hz
Operating Temp. Range
-40C to 60C
Number of Aux. Outputs
NO AUX
Keying Position
23
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Load Break Amp Rating
100A
Contact Configuration
2P+G
Wire Temperature Rating
60 Degrees C
Number of Notch Positions
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Blue
Impact Rating
IK08
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100C RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 2P+G 100A 208 VAC 60 Hz NO AUX MUSHROOM PAWL
