  6. Pin & Sleeve Receptacle, 100 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

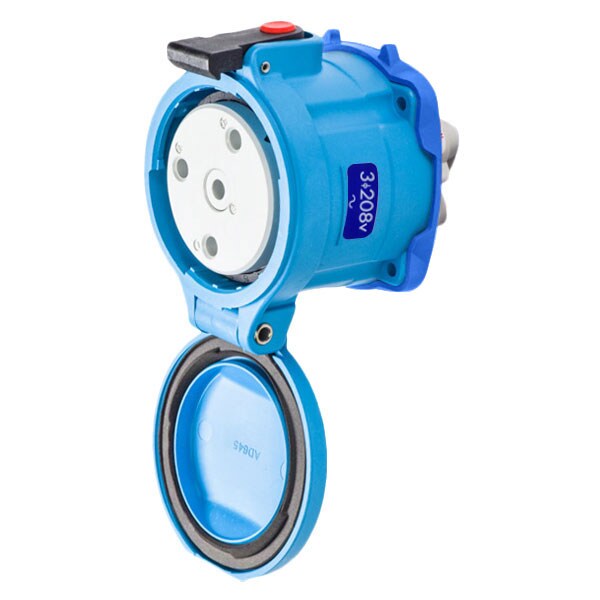

Meltric Pin & Sleeve Receptacle, 100 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 31-64233-K16-NC

Pin & Sleeve Receptacle, 100 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 31-64233-K16-NC
  • Zoro # G001757801
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-64233-K16-NC
Zoro #
G001757801
UPC #
784474033541
Country of Origin
United States

Dimensions

Wire Size
10 AWG to 2 AWG
Use With Installation Accessory Size
4
Wire Strip Length
Phase: 15/16 in (24 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
208V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Contact Configuration
3P+G
Impact Rating
IK08
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Hz
60 Hz
Color Code
Blue
Wire Temperature Rating
60 Degrees C
Number of Aux. Outputs
NO AUX
Operating Temp. Range
-40C to 60C
Keying Position
23
Load Break Amp Rating_Abnormal Overload
150A

Description

DR100 RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 3P+G 100A 208 VAC 60 Hz NO AUX NORMALLY CLOSED LID
