  6. Pin & Sleeve Receptacle, 100 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 3R

This item is Discontinued.

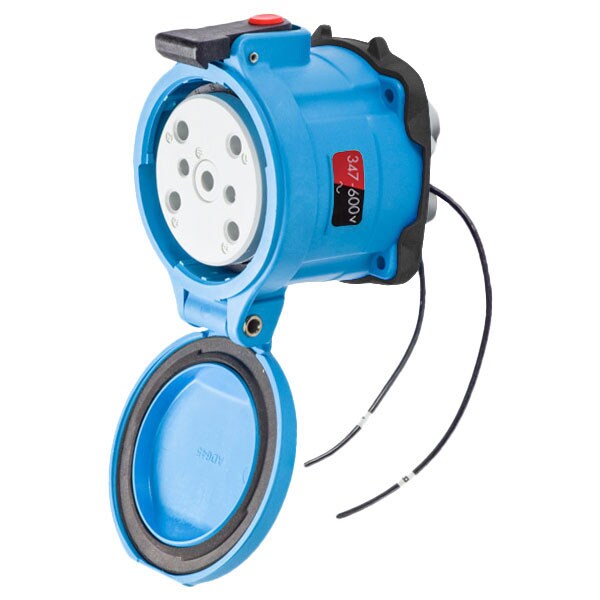

Meltric Pin & Sleeve Receptacle, 100 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 3R 33-64187-C-K14-972

Pin & Sleeve Receptacle, 100 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 3R (Discontinued)

  • Mfr # 33-64187-C-K14-972
  • Zoro # G301759383
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-64187-C-K14-972
Zoro #
G301759383
UPC #
784474634076
Country of Origin
United States

Dimensions

Wire Size
14 AWG; 10 AWG to 2 AWG
Wire Strip Length
Phase: 15/16 in (24 mm)
Use With Installation Accessory Size
4

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Body Material
Polyester
Use With
Mating Box MB6
HP
50
Terminal Connection
Prewired
Number of Aux. Outputs
+2 AUX
Load Break Amp Rating
100A
Number of Notch Positions
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Black
Operating Temp. Range
-40C to 60C
Auxiliary Contact Rating
1.2A
Wire Temperature Rating
60 Degrees C
Auxiliary Contact Voltage Rating
600VAC
Impact Rating
IK08
Hz
60 Hz
Contact Configuration
3P+N+G
Keying Position
18
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100C RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 3P+N+G 100A 347/600 VAC 60 Hz +2 AUX
