  6. Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

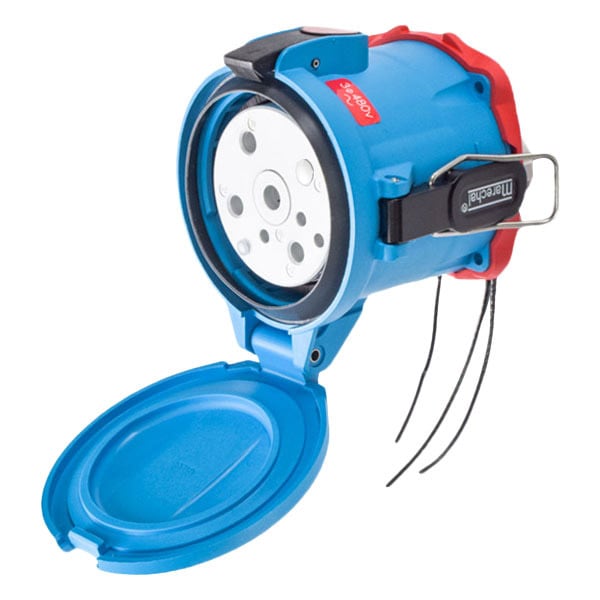

Meltric Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 33-94043-263-843

Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-94043-263-843
  • Zoro # G801757827
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-94043-263-843
Zoro #
G801757827
UPC #
784474024211
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
5
Wire Strip Length
Phase: 1-3/16 in (30 mm)
Wire Size
14 AWG; 4 AWG to 2/0 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
Switch Rated
Yes
Use With
Mating Box MB10
Body Material
Polyester
HP
30
Terminal Type
Screw terminal
Terminal Connection
Prewired
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Contact Configuration
3P+G
Number of Notch Positions
24
Number of Aux. Outputs
+3 AUX
Wire Temperature Rating
60 Degrees C
Hz
60 Hz
Auxiliary Contact Rating
0.3A
Keying Position
4
Operating Temp. Range
-40C to 60C
Color Code
Red
Impact Rating
IK08
Auxiliary Contact Voltage Rating
600VAC
Load Break Amp Rating
100A
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100 RECEPTACLE POLY BLUE SIZE 5 TYPE 4X 3P+G 100A 480 VAC 60 Hz +3 AUX PADLOCK PAWL
