  6. Pin & Sleeve Receptacle, 15 A, 480V AC, 6 Pole, Screw Terminals Wire Connection Type Silver

This item is Discontinued.

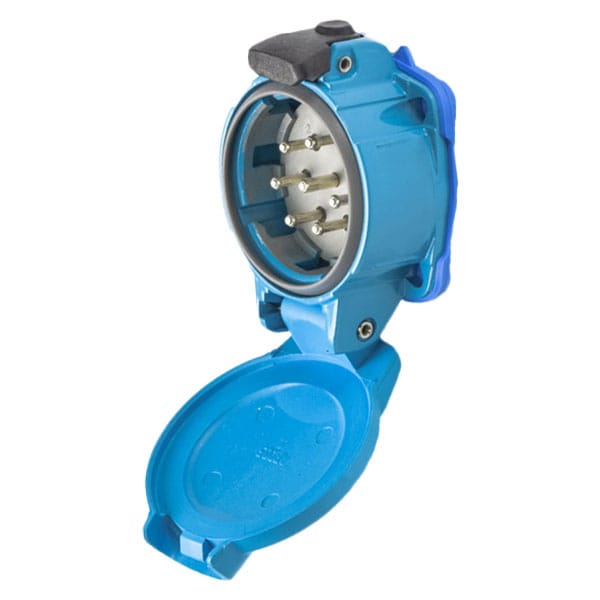

Meltric Pin & Sleeve Receptacle, 15 A, 480V AC, 6 Pole, Screw Terminals Wire Connection Type Silver 09-P4061-001

Pin & Sleeve Receptacle, 15 A, 480V AC, 6 Pole, Screw Terminals Wire Connection Type Silver (Discontinued)

  • Mfr # 09-P4061-001
  • Zoro # G901755303
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09-P4061-001
Zoro #
G901755303
UPC #
784474640565
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
1
Wire Size
18 AWG to 10 AWG
Wire Strip Length
Phase: 5/16 in (8 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
15 A
Voltage Rating
480V AC
Number of Poles
6
Number of Wires
7
IP Rating
IP66, IP67
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-02, E79796, UL 1682
Voltage
480V AC
Use With
Mating Box MB3
Body Material
Zamak
Load Break Amp Rating
15A
Impact Rating
IK09
Keying Position
1
Number of Notch Positions
5
Color Code
Blue
Operating Temp. Range
-40C to 60C
Terminal Type
Screw terminal
Hz
60 Hz
Contact Configuration
6P+G
Tightening Torque
Phase: 8 IN-LBS / 0.9 N-M
Wire Temperature Rating
60 Degrees C

Description

PN7c INLET METAL SIZE 1 IP 66/67 6P+G 15A 480 VAC 60 Hz REVERSE INTERIORS
