  6. Pin & Sleeve Receptacle, 15 A, 480V AC/130V DC, 15 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

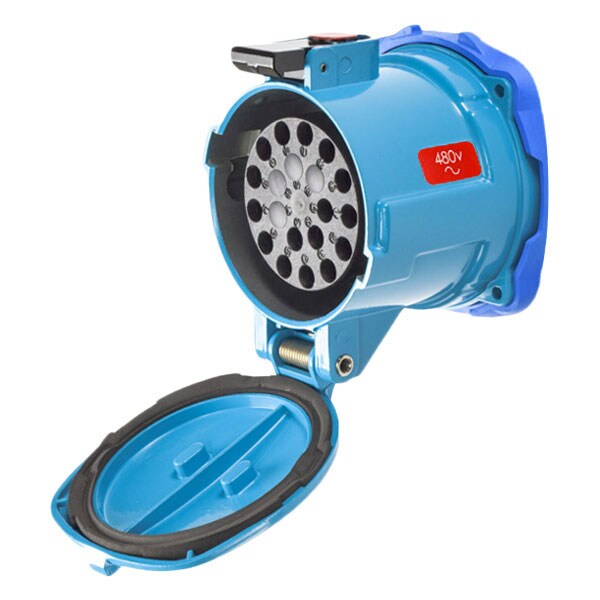

Meltric Pin & Sleeve Receptacle, 15 A, 480V AC/130V DC, 15 Pole, Screw Terminals Wire Connection Type Blue 17-64151-843

Pin & Sleeve Receptacle, 15 A, 480V AC/130V DC, 15 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 17-64151-843
  • Zoro # G201755256
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
17-64151-843
Zoro #
G201755256
UPC #
784474014700
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 1/2 in (13 mm)
Wire Size
16 AWG to 10 AWG
Use With Installation Accessory Size
5

Details

Item
Pin & Sleeve Receptacle
Current Rating
15 A
Voltage Rating
480V AC/130V DC
Number of Poles
15
Number of Wires
16
IP Rating
IP54, IP55
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13
Resistance Properties
Impact Resistant
HP
3
Use With
Mating Box MB10
Body Material
Zamak
Operating Temp. Range
-40C to 60C
Impact Rating
IK09
Contact Configuration
15P+G
Hz
60 Hz
Wire Temperature Rating
75 Degrees C
Short Circuit Current Rating
10 KA - WITHSTAND
Number of Notch Positions
4
Color Code
Blue
Tightening Torque
Phase: 4.50 IN-LBS / 0.5 N-M
Keying Position
1
Load Break Amp Rating
15A

Description

DN20c RECEPTACLE METAL BLUE SIZE 5 IP 54/55 15P+G 15A 480 VAC/130 VDC 60 Hz PADLOCK PAWL
