  6. Pin & Sleeve Receptacle, 150 A, 125/250V AC, Three Phase, 2 Pole, Blue, NEMA 4X

This item is Discontinued.

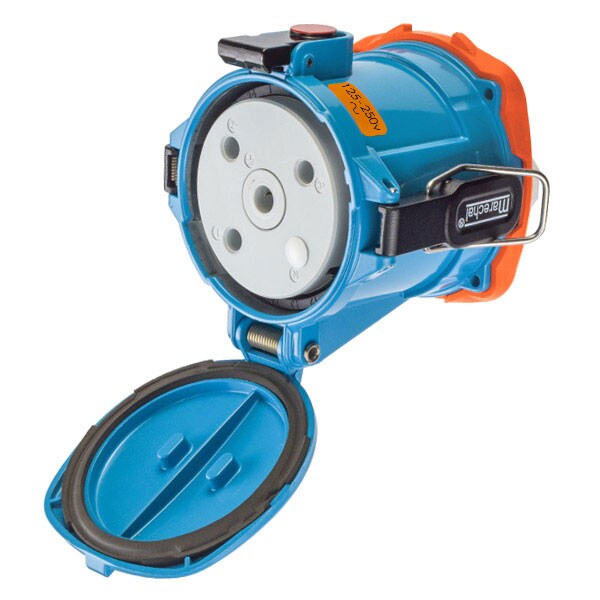

Meltric Pin & Sleeve Receptacle, 150 A, 125/250V AC, Three Phase, 2 Pole, Blue, NEMA 4X 69-94076-843-NC

Pin & Sleeve Receptacle, 150 A, 125/250V AC, Three Phase, 2 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 69-94076-843-NC
  • Zoro # G401756985
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
69-94076-843-NC
Zoro #
G401756985
UPC #
784474054119
Country of Origin
United States

Dimensions

Wire Size
4 AWG to 2/0 AWG
Wire Strip Length
Phase: 1-3/16 in (30 mm)
Use With Installation Accessory Size
5

Details

Item
Pin & Sleeve Receptacle
Current Rating
150 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
HP
7.5 or 30
Body Material
Aluminum
Switch Rated
Yes
Use With
Mating Box MB10
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Number of Notch Positions
5
Color Code
Orange
Wire Temperature Rating
75 Degrees C
Hz
60 Hz
Number of Aux. Outputs
NO AUX
Contact Configuration
2P+N+G
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Impact Rating
IK10
Keying Position
13
Load Break Amp Rating
225A
Operating Temp. Range
-40C to 60C
Load Break Amp Rating_Abnormal Overload
225A
Flange Type
Flanged

Description

DSN150 RECEPTACLE METAL BLUE SIZE 5 TYPE 4X 2P+N+G 150A 125/250 VAC 60 Hz NO AUX PADLOCK PAWL NORMALLY CLOSED LID
