  6. Pin & Sleeve Receptacle, 150 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

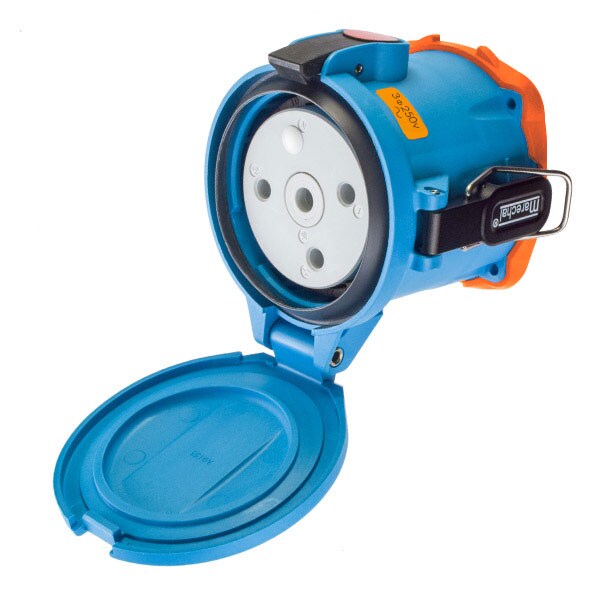

Meltric Pin & Sleeve Receptacle, 150 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 63-94073-375-843

Pin & Sleeve Receptacle, 150 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-94073-375-843
  • Zoro # G401757319
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-94073-375-843
Zoro #
G401757319
UPC #
784474038263
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 1-3/16 in (30 mm)
Use With Installation Accessory Size
5
Wire Size
4 AWG to 2/0 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
150 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
HP
30
Switch Rated
Yes
Body Material
Polyester
Keying Position
13
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Contact Configuration
3P+G
Operating Temp. Range
-40C to 60C
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Wire Temperature Rating
60 Degrees C
Color Code
Orange
Number of Aux. Outputs
NO AUX
Hz
60 Hz
Impact Rating
IK08
Load Break Amp Rating
150A
Load Break Amp Rating_Abnormal Overload
225A
Flange Type
Flanged

Description

DSN150 RECEPTACLE POLY BLUE SIZE 5 TYPE 4X IP 69 3P+G 150A 250 VAC 60 Hz NO AUX PADLOCKABLE MUSHROOM PAWL
