  6. Pin & Sleeve Receptacle, 150 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

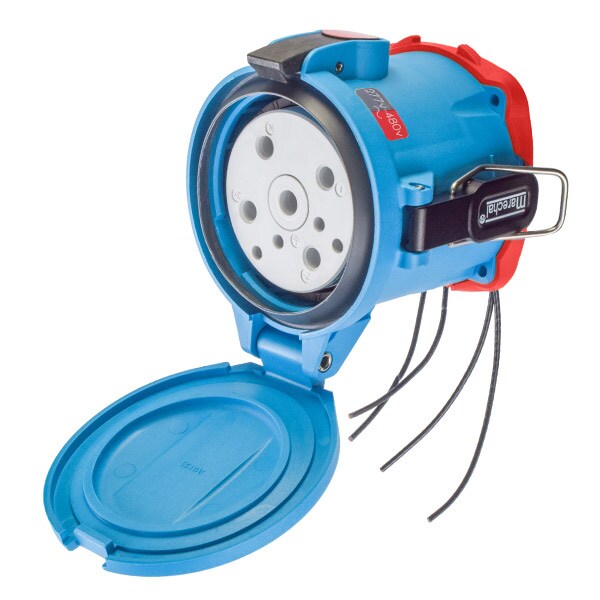

Meltric Pin & Sleeve Receptacle, 150 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 63-94047-264

Pin & Sleeve Receptacle, 150 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 63-94047-264
  • Zoro # G601757355
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-94047-264
Zoro #
G601757355
UPC #
784474056502
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 1-3/16 in (30 mm)
Use With Installation Accessory Size
5
Wire Size
14 AWG to 14 AWG; 4 AWG to 2/0 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
150 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
HP
25 or 75
Switch Rated
Yes
Use With
Mating Box MB10
Impact Rating
IK08
Auxiliary Contact Voltage Rating
600VAC
Operating Temp. Range
-40C to 60C
Terminal Connection
Prewired
Number of Aux. Outputs
+4 AUX
Keying Position
2
Contact Configuration
3P+N+G
Auxiliary Contact Rating
0.3A
Color Code
Red
Wire Temperature Rating
75 Degrees C
Hz
60 Hz
Load Break Amp Rating
150A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Number of Notch Positions
5
Load Break Amp Rating_Abnormal Overload
225A

Description

DSN150 RECEPTACLE POLY BLUE SIZE 5 TYPE 4X IP 69 3P+N+G 150A 277/480 VAC 60 Hz +4 AUX
