  6. Pin & Sleeve Receptacle, 150 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

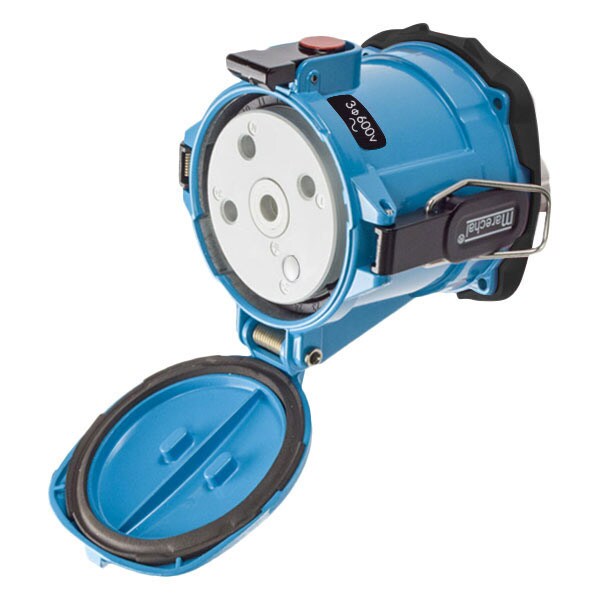

Meltric Pin & Sleeve Receptacle, 150 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 39-94183-K14

Pin & Sleeve Receptacle, 150 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 39-94183-K14
  • Zoro # G201759445
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-94183-K14
Zoro #
G201759445
UPC #
784474633048
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
5
Wire Strip Length
Phase: 1-3/16 in (30 mm)
Wire Size
4 AWG to 2/0 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
150 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Aluminum
Use With
Mating Box MB10
Number of Aux. Outputs
NO AUX
Operating Temp. Range
-40C to 60C
Hz
60 Hz
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Impact Rating
IK10
Keying Position
18
Contact Configuration
3P+G
Color Code
Black
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Number of Notch Positions
24
Load Break Amp Rating
150A
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating_Abnormal Overload
225A

Description

DR150 RECEPTACLE METAL BLUE SIZE 5 TYPE 3R 3P+G 150A 600 VAC 60 Hz NO AUX
