  6. Pin & Sleeve Receptacle, 20 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

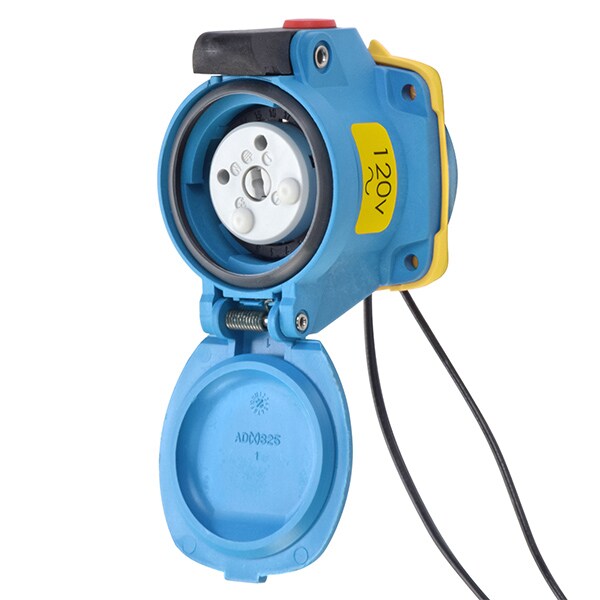

Meltric Pin & Sleeve Receptacle, 20 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type 63-14165-972-843

Pin & Sleeve Receptacle, 20 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-14165-972-843
  • Zoro # G901756683
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-14165-972-843
Zoro #
G901756683
UPC #
784474076432
Country of Origin
Unknown

Dimensions

Wire Strip Length
Phase: 1/2 in (13 mm)
Use With Installation Accessory Size
1
Wire Size
14 AWG to 12 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
20 A
Voltage Rating
120V AC
Phase
Single
Number of Poles
1
Number of Wires
3
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
HP
0.75
NEMA Rating
4X
Body Material
Polyester
Voltage
120V AC
Hz
60 Hz
Impact Rating
IK08
Number of Aux. Outputs
+2 AUX
Tightening Torque
Phase: 10.6 IN-LBS / 1.2 N-M
Number of Notch Positions
23
Operating Temp. Range
-40C to 60C
Load Break Amp Rating
20A
Auxiliary Contact Voltage Rating
250VAC
Terminal Type
Screw terminal
Keying Position
7
Contact Configuration
1P+N+G
Wire Temperature Rating
60 Degrees C
Color Code
Yellow
Auxiliary Contact Rating
0.3A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating_Abnormal Overload
30A

Description

DSN20 RECEPTACLE POLY BLUE SIZE 1 TYPE 4X IP 69 1P+N+G 20A 120 VAC 60 Hz +2 AUX PADLOCK PAWL
