  6. Pin & Sleeve Receptacle, 20 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

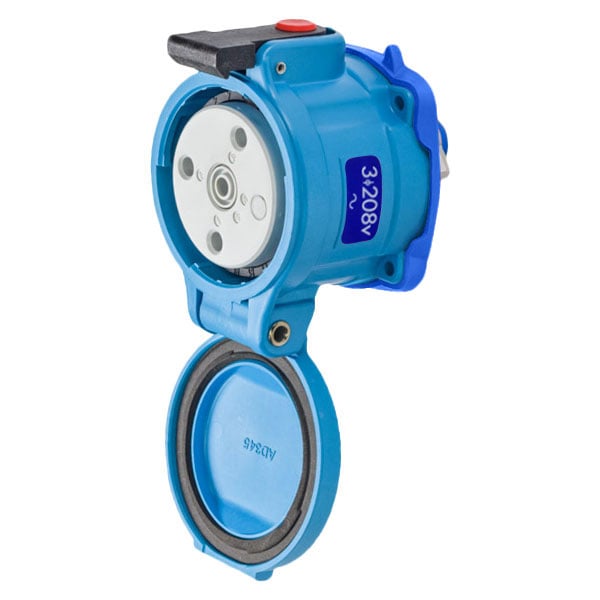

Meltric Pin & Sleeve Receptacle, 20 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 33-14163-NC

Pin & Sleeve Receptacle, 20 A, 208V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-14163-NC
  • Zoro # G501758209
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-14163-NC
Zoro #
G501758209
UPC #
784474045179
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
2
Wire Size
14 AWG to 8 AWG
Wire Strip Length
Phase: 7/16 in (11 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
20 A
Voltage Rating
208V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Impact Resistant
Switch Rated
Yes
HP
3
Body Material
Polyester
Number of Aux. Outputs
NO AUX
Keying Position
16
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Load Break Amp Rating
30A
Operating Temp. Range
-40C to 60C
Color Code
Blue
Contact Configuration
3P+G
Hz
60 Hz
Impact Rating
IK08
Wire Temperature Rating
60 Degrees C
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND

Description

DS20 RECEPTACLE POLY BLUE SIZE 2 TYPE 3R 3P+G 20A 208 VAC 60 Hz NO AUX NORMALLY CLOSED LID
