  6. Pin & Sleeve Receptacle, 250 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

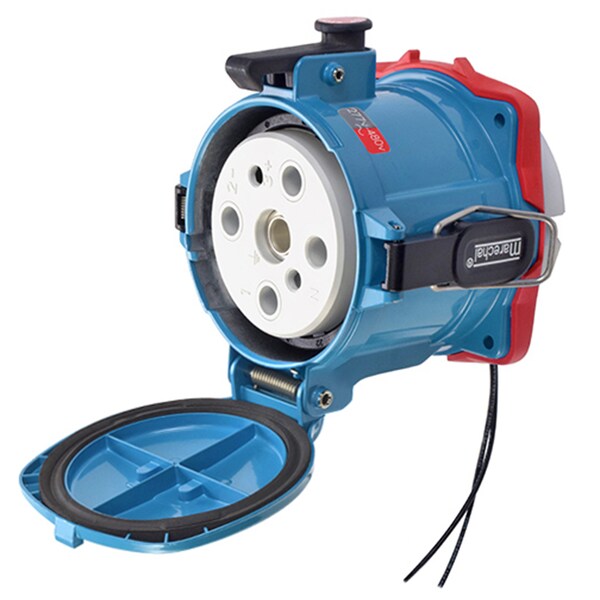

Meltric Pin & Sleeve Receptacle, 250 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 39-24247-K04-972

Pin & Sleeve Receptacle, 250 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 39-24247-K04-972
  • Zoro # G201759124
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-24247-K04-972
Zoro #
G201759124
UPC #
784474062794
Country of Origin
Unknown

Dimensions

Use With Installation Accessory Size
6
Wire Size
14 AWG; 4 AWG to 4/0 AWG
Wire Strip Length
Phase: 1-1/2 in (38 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
250 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Aluminum
Use With
Mating Box MB20
Number of Aux. Outputs
+2 AUX
Tightening Torque
Phase: 110 IN-LBS / 12.4 N-M
Hz
60 Hz
Auxiliary Contact Voltage Rating
600VAC
Auxiliary Contact Rating
0.3A
Number of Notch Positions
12
Contact Configuration
3P+N+G
Operating Temp. Range
-40C to 60C
Short Circuit Current Rating
10 KA - MAKE & WITHSTAND
Keying Position
24
Impact Rating
IK10
Color Code
Red
Wire Temperature Rating
60 Degrees C
Terminal Connection
Prewired
Load Break Amp Rating
250A
Load Break Amp Rating_Abnormal Overload
375A

Description

DR250 RECEPTACLE METAL BLUE SIZE 6 TYPE 3R 3P+N+G 250A 277/480 VAC 60 Hz +2 AUX
