  6. Pin & Sleeve Receptacle, 30 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

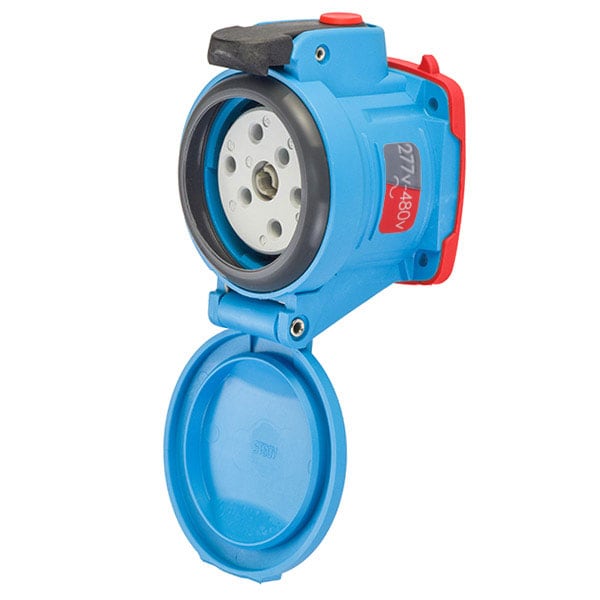

Meltric Pin & Sleeve Receptacle, 30 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 63-34047-972-NC

Pin & Sleeve Receptacle, 30 A, 277/480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 63-34047-972-NC
  • Zoro # G801759616
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-34047-972-NC
Zoro #
G801759616
UPC #
784474602310
Country of Origin
United States

Dimensions

Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 7/16 in (11 mm)
Use With Installation Accessory Size
2
Wire Size
14 AWG to 14 AWG; 14 AWG to 8 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
HP
3 or 15
NEMA Rating
4X
Switch Rated
Yes
Body Material
Polyester
Use With
Mating Box MB3
Voltage
277/480V AC
Wire Temperature Rating
60 Degrees C
Color Code
Red
Load Break Amp Rating
30A
Auxiliary Contact Rating
1.2A
Contact Configuration
3P+N+G
Impact Rating
IK08
Hz
60 Hz
Number of Notch Positions
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Terminal Connection
Screw
Operating Temp. Range
-40C to 60C
Auxiliary Contact Voltage Rating
600VAC
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Keying Position
4
Terminal Type
Screw terminal
Number of Aux. Outputs
+2 AUX
Load Break Amp Rating_Abnormal Overload
45A

Description

DSN30 RECEPTACLE POLY BLUE SIZE 2 TYPE 4X IP 69 3P+N+G 30A 277/480 VAC 60 Hz +2 AUX NORMALLY CLOSED LID
