  6. Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

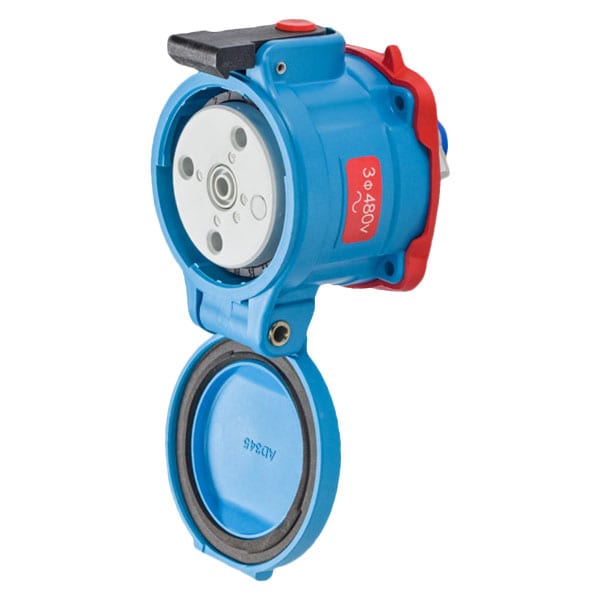

Meltric Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 33-34043-375-843-NC

Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-34043-375-843-NC
  • Zoro # G201756611
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-34043-375-843-NC
Zoro #
G201756611
UPC #
784474668361
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 4 AWG
Use With Installation Accessory Size
3

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Impact Resistant
Use With
Mating Box MB3
HP
15
Switch Rated
Yes
Body Material
Polyester
Number of Aux. Outputs
NO AUX
Impact Rating
IK08
Wire Temperature Rating
60 Degrees C
Number of Notch Positions
24
Load Break Amp Rating
30A
Color Code
Red
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Hz
60 Hz
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Keying Position
4
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Load Break Amp Rating_Abnormal Overload
45A

Description

DS30 RECEPTACLE POLY BLUE SIZE 3 TYPE 3R 3P+G 30A 480 VAC 60 Hz NO AUX PADLOCKABLE MUSHROOM PAWL NORMALLY CLOSED LID
