  11. Pin & Sleeve Receptacle, 50 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

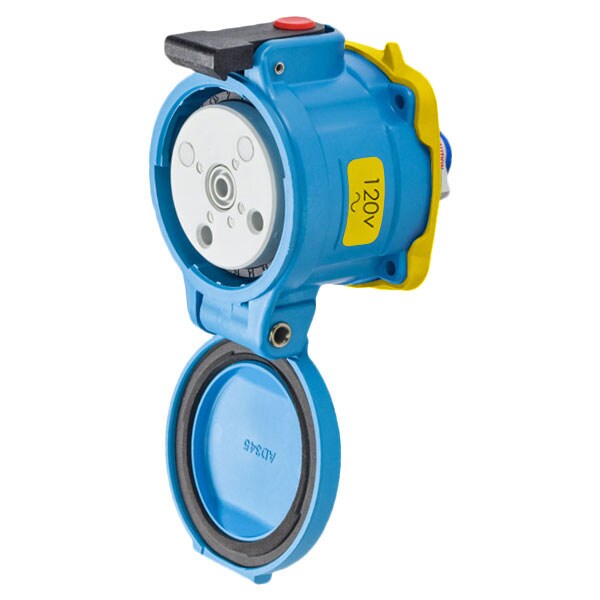

Meltric Pin & Sleeve Receptacle, 50 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type 31-34235-K16

Pin & Sleeve Receptacle, 50 A, 120V AC, Single Phase, 1 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 31-34235-K16
  • Zoro # G701759723
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-34235-K16
Zoro #
G701759723
UPC #
784474061278
Country of Origin
Unknown

Dimensions

Use With Installation Accessory Size
3
Wire Size
14 AWG to 4 AWG
Wire Strip Length
Phase: 9/16 in (14 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
50 A
Voltage Rating
120V AC
Phase
Single
Number of Poles
1
Number of Wires
3
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Number of Aux. Outputs
NO AUX
Contact Configuration
1P+N+G
Load Break Amp Rating
50A
Keying Position
23
Number of Notch Positions
24
Operating Temp. Range
-40C to 60C
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Wire Temperature Rating
60 Degrees C
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Yellow
Hz
60 Hz
Impact Rating
IK08
Load Break Amp Rating_Abnormal Overload
75A

Description

DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 3R 1P+N+G 50A 120 VAC 60 Hz NO AUX
