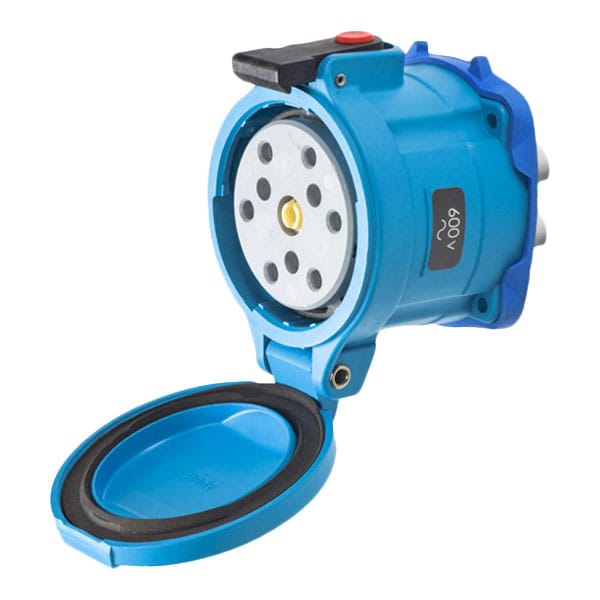

Pin & Sleeve Receptacle, 50 A, 600V AC/130V DC, 6 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)
- Mfr # 31-34961
- Zoro # G001755371
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
31-34961
Zoro #
G001755371
UPC #
784474594370
Country of Origin
United States
Dimensions
Wire Strip Length
Phase: 1-1/16 in (27 mm)
Wire Size
14 AWG to 8 AWG
Use With Installation Accessory Size
3
Details
Item
Pin & Sleeve Receptacle
Current Rating
50 A
Voltage Rating
600V AC/130V DC
Number of Poles
6
Number of Wires
7
IP Rating
IP66, IP67, IP69
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB6
Operating Temp. Range
-40C to 60C
Keying Position
1
Tightening Torque
Phase: 16 IN-LBS / 1.8 N-M
Impact Rating
IK08
Contact Configuration
6P+G
Number of Notch Positions
5
Hz
60 Hz
Number of Aux. Outputs
NO AUX
Color Code
Blue
Description
DR7c RECEPTACLE POLY BLUE SIZE 3 IP 54/55 6P+G 50A 600 VAC/130 VDC 60 Hz NO AUX
