  6. Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

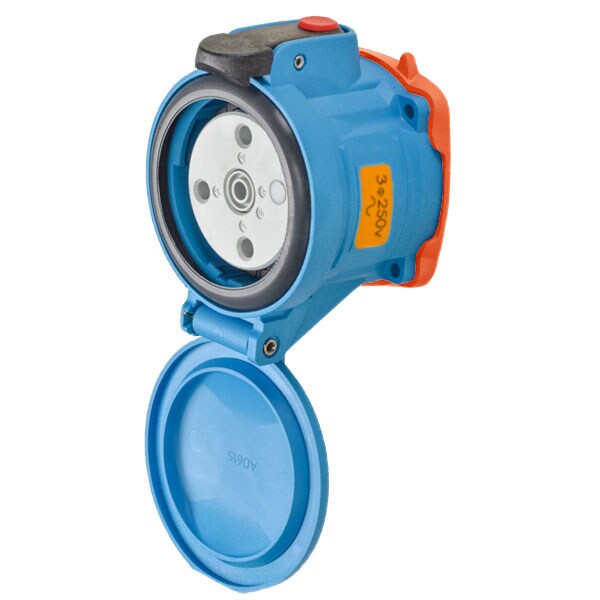

Meltric Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 63-64073-270

Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-64073-270
  • Zoro # G701757064
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-64073-270
Zoro #
G701757064
UPC #
784474669276
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
3
Wire Strip Length
Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 4 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Resistance Properties
Impact Resistant
Switch Rated
Yes
Body Material
Polyester
HP
7.5
Contact Configuration
3P+G
Impact Rating
IK08
Operating Temp. Range
-40C to 60C
Number of Notch Positions
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Orange
Load Break Amp Rating
60A
Hz
60 Hz
Wire Temperature Rating
60 Degrees C
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Number of Aux. Outputs
NO AUX
Keying Position
7
Load Break Amp Rating_Abnormal Overload
90A

Description

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 3P+G 60A 250 VAC 60 Hz NO AUX AUXILIARY SWITCH
