  6. Pin & Sleeve Receptacle, 60 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

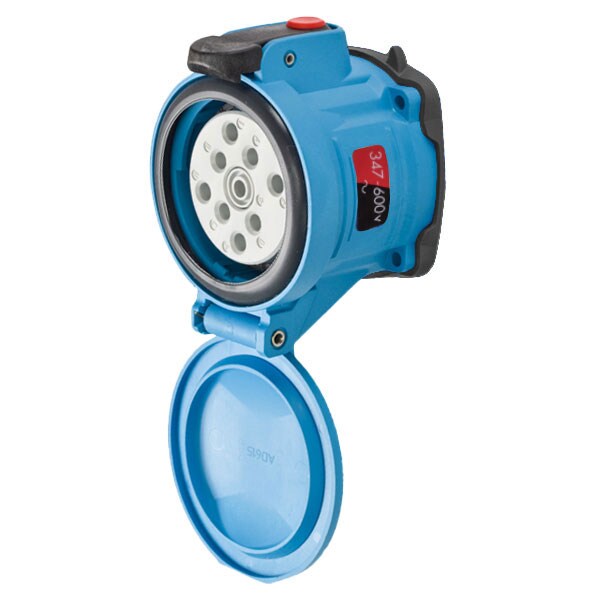

Meltric Pin & Sleeve Receptacle, 60 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 4X 63-64147-974

Pin & Sleeve Receptacle, 60 A, 347/600V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 63-64147-974
  • Zoro # G501758292
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-64147-974
Zoro #
G501758292
UPC #
784474625616
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
3
Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 14 AWG; 14 AWG to 4 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
Resistance Properties
Impact Resistant
HP
20
Switch Rated
Yes
Body Material
Polyester
Keying Position
14
Contact Configuration
3P+N+G
Color Code
Black
Terminal Connection
Screw
Auxiliary Contact Voltage Rating
600VAC
Wire Temperature Rating
60 Degrees C
Number of Notch Positions
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Hz
60 Hz
Auxiliary Contact Rating
1.2A
Number of Aux. Outputs
+4 AUX
Impact Rating
IK08
Operating Temp. Range
-40C to 60C
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Load Break Amp Rating
60A
Load Break Amp Rating_Abnormal Overload
90A

Description

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 3P+N+G 60A 347/600 VAC 60 Hz +4 AUX
