This item is Discontinued.

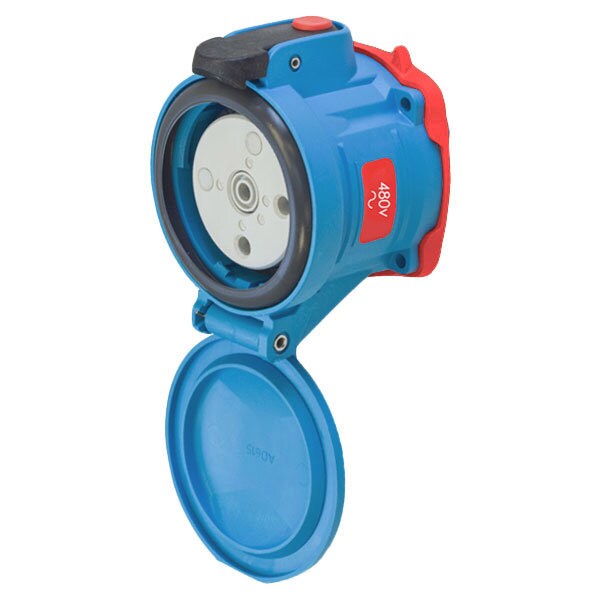

Meltric Pin & Sleeve Receptacle, 60 A, 480V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X 63-64042-843-NC

Pin & Sleeve Receptacle, 60 A, 480V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X (Discontinued)

  • Mfr # 63-64042-843-NC
  • Zoro # G701757408
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
63-64042-843-NC
Zoro #
G701757408
UPC #
784474056939
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 3/4 in (19 mm)
Use With Installation Accessory Size
3
Wire Size
14 AWG to 4 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
480V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682
Resistance Properties
Corrosion Resistant
HP
7.5
Use With
Mating Box MB3
Switch Rated
Yes
Body Material
Polyester
Operating Temp. Range
-40C to 60C
Number of Aux. Outputs
NO AUX
Load Break Amp Rating
60A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Number of Notch Positions
24
Color Code
Red
Impact Rating
IK08
Wire Temperature Rating
60 Degrees C
Contact Configuration
2P+G
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Hz
60 Hz
Keying Position
4
Load Break Amp Rating_Abnormal Overload
90A

Description

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 2P+G 60A 480 VAC 60 Hz NO AUX PADLOCK PAWL NORMALLY CLOSED LID
