  6. Watertight Pin & Sleeve Inlet, 30 A, 130V DC, 2 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

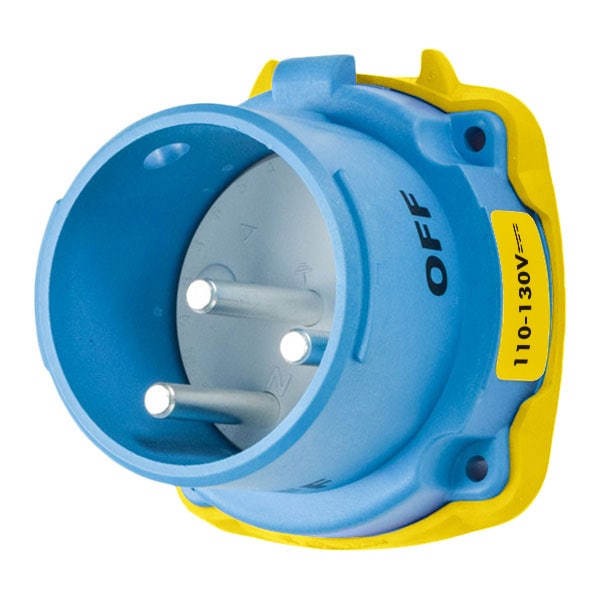

Meltric Watertight Pin & Sleeve Inlet, 30 A, 130V DC, 2 Pole, Screw Terminals Wire Connection Type Blue 33-38109-4X

Watertight Pin & Sleeve Inlet, 30 A, 130V DC, 2 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-38109-4X
  • Zoro # G701759952
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-38109-4X
Zoro #
G701759952
UPC #
784474080538
Country of Origin
Unknown

Dimensions

Use With Installation Accessory Size
3
Wire Strip Length
Phase: 7/8 in (22 mm)
Wire Size
14 AWG to 4 AWG

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
130V DC
Number of Poles
2
Number of Wires
3
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Keying Position
10
Wire Temperature Rating
60 Degrees C
Number of Notch Positions
24
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Contact Configuration
2P+G
Impact Rating
IK08
Color Code
Yellow
Operating Temp. Range
-40C to 60C
Load Break Amp Rating_Abnormal Overload
45A

Description

DSDC3 INLET POLY BLUE SIZE 3 TYPE 4X 2P+G 30A 130 VDC TYPE 4X WATERTIGHTNESS
