  6. Watertight Pin & Sleeve Inlet, 50 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

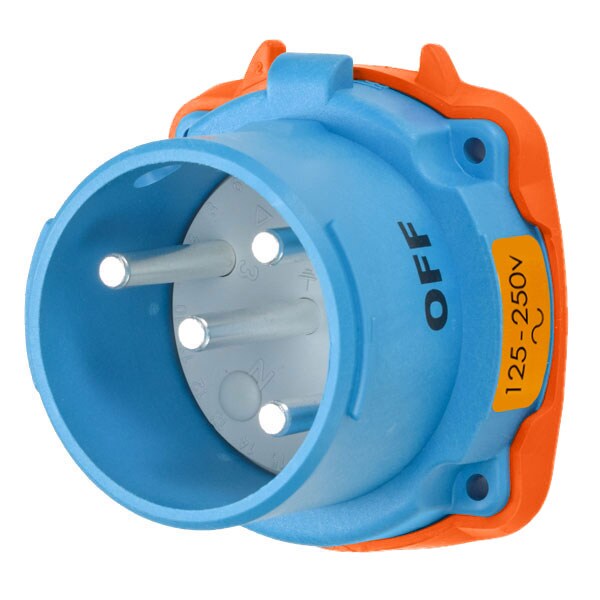

Meltric Watertight Pin & Sleeve Inlet, 50 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue 31-38176-K07-4X

Watertight Pin & Sleeve Inlet, 50 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 31-38176-K07-4X
  • Zoro # G601760119
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
31-38176-K07-4X
Zoro #
G601760119
UPC #
784474650823
Country of Origin
United States

Dimensions

Wire Size
14 AWG to 4 AWG
Use With Installation Accessory Size
3
Wire Strip Length
Phase: 7/8 in (22 mm)

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
50 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Wire Temperature Rating
60 Degrees C
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Number of Aux. Outputs
NO AUX
Keying Position
17
Contact Configuration
2P+N+G
Operating Temp. Range
-40C to 60C
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Impact Rating
IK08
Color Code
Orange
Hz
60 Hz
Load Break Amp Rating
50A
Number of Notch Positions
24
Load Break Amp Rating_Abnormal Overload
75A

Description

DR50 INLET POLY BLUE SIZE 3 TYPE 4X 2P+N+G 50A 125/250 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
