  6. Watertight Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

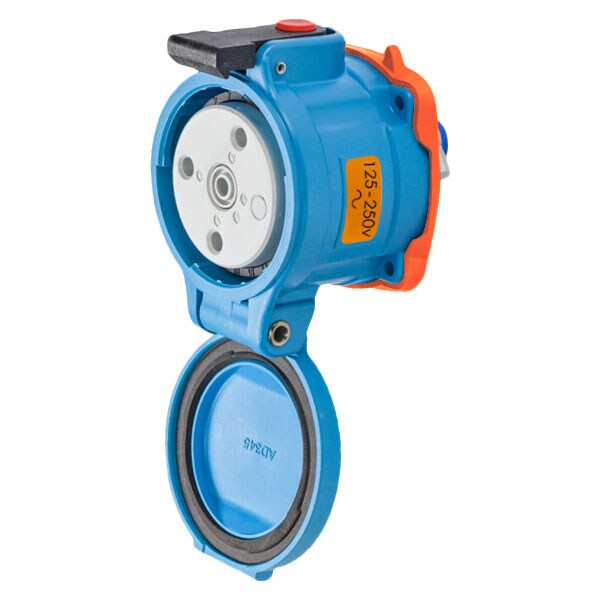

Meltric Watertight Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type 33-34076-4X

Watertight Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-34076-4X
  • Zoro # G101757794
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-34076-4X
Zoro #
G101757794
UPC #
784474009058
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 3/4 in (19 mm)
Use With Installation Accessory Size
3
Wire Size
14 AWG to 4 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
HP
1.5 or 3
Use With
Mating Box MB3
Switch Rated
Yes
Body Material
Polyester
Contact Configuration
2P+N+G
Color Code
Orange
Hz
60 Hz
Number of Notch Positions
24
Impact Rating
IK08
Wire Temperature Rating
60 Degrees C
Number of Aux. Outputs
NO AUX
Load Break Amp Rating
30A
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Operating Temp. Range
-40C to 60C
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Keying Position
7
Load Break Amp Rating_Abnormal Overload
45A

Description

DS30 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 2P+N+G 30A 125/250 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
