  6. Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

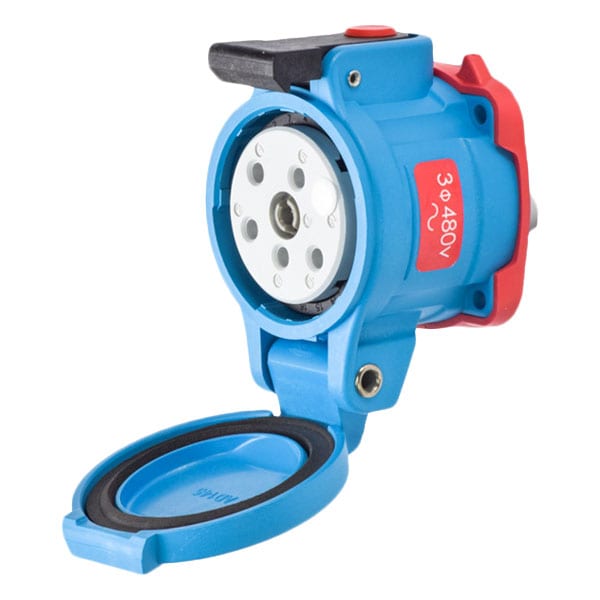

Meltric Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 31-14243-K04-972-4X

Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 31-14243-K04-972-4X
  • Zoro # G401759788
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-14243-K04-972-4X
Zoro #
G401759788
UPC #
784474645270
Country of Origin
United States

Dimensions

Wire Size
14 AWG; 14 AWG to 8 AWG
Use With Installation Accessory Size
2
Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 7/16 in (11 mm)

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Impact Rating
IK08
Color Code
Red
Contact Configuration
3P+G
Terminal Connection
Screw
Auxiliary Contact Voltage Rating
600VAC
Operating Temp. Range
-40C to 60C
Wire Temperature Rating
60 Degrees C
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Auxiliary Contact Rating
1.2A
Hz
60 Hz
Number of Notch Positions
24
Number of Aux. Outputs
+2 AUX
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating
30A
Keying Position
24
Load Break Amp Rating_Abnormal Overload
45A

Description

DR30 RECEPTACLE POLY BLUE SIZE 2 TYPE 4X 3P+G 30A 480 VAC 60 Hz +2 AUX TYPE 4X WATERTIGHTNESS
