  6. Watertight Pin & Sleeve Receptacle, 50 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

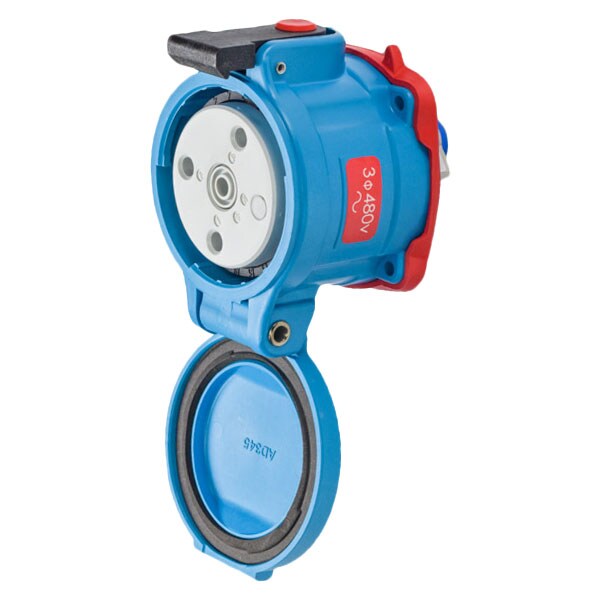

Meltric Watertight Pin & Sleeve Receptacle, 50 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 31-34243-K04-4X

Watertight Pin & Sleeve Receptacle, 50 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 31-34243-K04-4X
  • Zoro # G101759439
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
31-34243-K04-4X
Zoro #
G101759439
UPC #
784474649940
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 9/16 in (14 mm)
Wire Size
14 AWG to 4 AWG
Use With Installation Accessory Size
3

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
50 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Number of Notch Positions
24
Hz
60 Hz
Number of Aux. Outputs
NO AUX
Keying Position
24
Operating Temp. Range
-40C to 60C
Impact Rating
IK08
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating
50A
Color Code
Red
Contact Configuration
3P+G
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating_Abnormal Overload
75A

Description

DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 3P+G 50A 480 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
