  6. Watertight Pin & Sleeve Receptacle, 50 A, 600V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

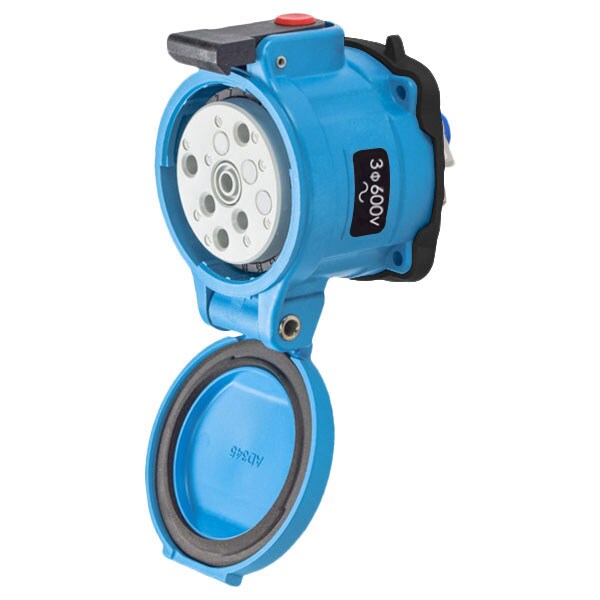

Meltric Watertight Pin & Sleeve Receptacle, 50 A, 600V AC, Three Phase, 3 Pole, Blue, NEMA 4X 31-34183-K14-972-4X

Watertight Pin & Sleeve Receptacle, 50 A, 600V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 31-34183-K14-972-4X
  • Zoro # G201757151
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-34183-K14-972-4X
Zoro #
G201757151
UPC #
784474666459
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
3
Wire Size
14 AWG; 14 AWG to 4 AWG
Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 9/16 in (14 mm)
Dimensions
4.21 in H x 3.57 in D

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
50 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508
Resistance Properties
Impact Resistant
Material
PBT
Use With
Mating Box MB3
Body Material
Polyester
Number of Notch Positions
24
Wire Temperature Rating
60 Degrees C
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Load Break Amp Rating
50A
Number of Aux. Outputs
+2 AUX
Contact Configuration
3P+G
Auxiliary Contact Rating
1.2A
Auxiliary Contact Voltage Rating
600VAC
Impact Rating
IK08
Terminal Connection
Screw
Hz
60 Hz
Operating Temp. Range
-40C to 60C
Keying Position
18
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Black
Load Break Amp Rating_Abnormal Overload
75A
Enclosure
IP55
Series
DR50
Temperature Rating
-40 to 140 °F

Description

DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 3P+G 50A 600 VAC 60 Hz +2 AUX TYPE 4X WATERTIGHTNESS
