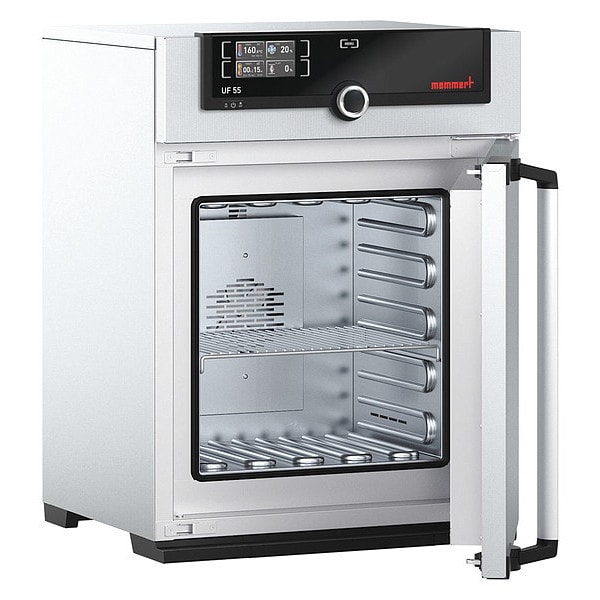

Memmert Universal Oven, Ambient, 15 In H UF 55 - main

Universal Oven, Ambient, 15 In H

  • Mfr # UF 55

  • Zoro # G9933253

product price: $3,668.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Overall Depth
22 3/8 in
Overall Height
31 in
Overall Width
23 in
Convection Type
Forced Air
Capacity
1.9 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UF 55
Zoro #
G9933253
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
22 3/8 in
Overall Height
31 in
Overall Width
23 in
Chamber Width
15.8 in
Overall Dimensions
23"W X 31"H X 20.2"D
Chamber Depth
13 in
Inside Usable Dimensions
15.7"Al x 15.7"An x 13"Prof.
Chamber Height
15.8 in
Manufacturers Warranty Length
3 yr
Interior Height
15 3/4 in
Interior Depth
11 1/2 in
Interior Width
15 3/4 in

Details

Item
Universal Oven
Convection Type
Forced Air
Capacity
1.9 cu ft
Volume
1.87 cu ft
Wattage
2,000 W
Voltage
115V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Chamber Material
Stainless Steel
Thermostat
PT 100 Sensor
Includes
Stainless Steel Grid
Number of Doors
1
Amps
14.8 A
Temp. Accuracy
up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Hz
50/60
Temp. Uniformity
+/-1.4 Degrees C
Power Requirement
115V, 50/60 Hz
Housing Material
Stainless Steel
Capacity (Cu.-Ft.)
1.9
Shelf Capacity
44 lb
Power Consumption
1700 Watts
Special Features
(2) Sensors for Mutual Monitoring, AtmoCONTROL Software, Color Touch Screen Controller, Displaying of Already Logged Protocol Data on The Controller, Electronic Temperature Monitoring TWW/TWB and Mechanical Temperature Limiter TB, Ethernet Interface for Reading Out The Protocol Data and for Uploading Programs, HeatBALANCE Function, Internal Data Logger with A Storage Capacity of At Least 10 Years, Multiple Over Temperature Protection, Reading Out Protocol Logs, Stainless Steel Interior and Housing, USB Port on The Controller For Uploading Programs, User Adjustable Calibration Values
Watts
1,700 W
Number of Shelves
1
Temp. Range (C)
At least 10 Degrees C above ambient up to +300 Degrees C
Material
ASTM 304 Stainless Steel
Door Material
Stainless Steel
Temp. Recovery Time
12 to 27 min.
Temp. Range
Ambient +10C to 300C
Preheat Time
40 to 56 min.
Capacity (ML)
53,000
Color
Silver
Minimum Top Clearance
5 7/8 in
Minimum Side Clearance
2 in
Minimum Back Clearance
7 7/8 in
Temperature Setting - Maximum
300 Degrees C
Shelving Material
Stainless Steel
Current
14.8 A
Temperature Uniformity
+/-1.4 Degrees C
Frequency
50/60 Hz
Housing Finish
Zinc Plated
Shelving Type
Grid
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Maximum Load Capacity per Shelf
44.1 lb
Number of Shelves Included
1
Timer Duration - Minimum
1 min
Timer Duration - Maximum
99 day
Display Type
Digital
Product Type
Universal Oven
Maximum Number of Shelves
4
Control Type
Touch Screen
Number of Temperature Settings
1
Temperature Setting - Minimum
20 Degrees C
Interior Material
Stainless Steel

Description

Universal Oven, Convection Type Forced Air, Temp. Range (C) At least 10 Degrees C above ambient up to +300 Degrees C, Overall Height 31 in, Overall Width 23 in, Overall Depth 22 3/8 in, Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 15.8 in, Chamber Width 15.8 in, Chamber Depth 13 in, Amps 14.8 A, Hz 50/60, Voltage 115V AC, Watts 1,700 W, Capacity (Cu.-Ft.) 1.9, Capacity (ML) 53,000, Programmable Yes, Temp. Uniformity +/-1.4 Degrees C
