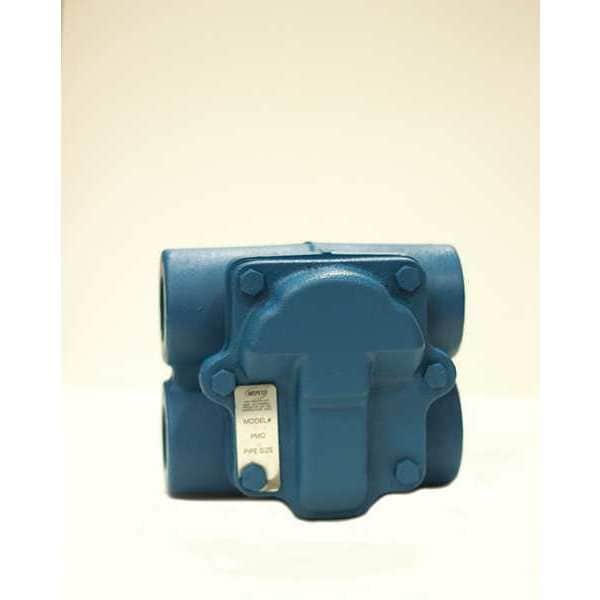

Mepco Steam Trap, 1-1/2" NPT Connections 44-730G - main

Steam Trap, 1-1/2" NPT Connections

  • Mfr # 44-730G

  • Zoro # G0579813

product price: $283.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
1 1/2 in
Max. Operating PSI
30 psi
Disc Material
Stainless Steel
End to End Length
5 3/4 in
Condensate Capacity Lbs/Hr
4,300 lb/hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
44-730G
Zoro #
G0579813
UPC #
-
Country of Origin
United States

Dimensions

End to End Length
5 3/4 in
Port Connection Size
1 1/2 in

Details

Item
Steam Trap
(F)NPT Connections
1 1/2 in
Max. Operating PSI
30 psi
Disc Material
Stainless Steel
Condensate Capacity Lbs/Hr
4,300 lb/hr
Max. Temp.
450 Degrees F
Body Material
Cast Iron
Application
Steam Heating, Process Equipment
Pressure Air Vent
Releases Air and Non-Condensable Gases that Adversely Affect the Heat Transfer of a Steam System
NPT Outlet
1 1/2 in
NPT Inlet
1 1/2 in
NPT Port
1 1/2 in
Downstream PSI Range
0 to 25 psi
Pipe Configuration
(2) Pipe, (1) Inlet and (1) Outlet
Trap Position
Horizontal
Type
Float and Thermostatic
Lever Assembly Material
Stainless Steel
Port Connection Type
NPT
Includes Strainer
Strainer Not Included
Port Connection Gender
Female
Number of Ports
4
Operating Temperature - Maximum
450 Degrees F
Float Material
Stainless Steel
Condensate Capacity
4,300 lb/hr
Port Types Included
Inlet, Outlet
Gasket Material
Non-Asbestos Fiber
Installation Orientation
Horizontal
Manufacturer Series
44
Maximum Capacity at Maximum Pressure Load
4,300 lb/hr at 30 psi
Valve Pin Material
Stainless Steel
Configuration
H Pattern
Includes Air Vent
Air Vent Included
Operating Pressure - Maximum
30 psi
Allowable Temperature - Minimum
35 Degrees F
Distance Between Inlet and Outlet Port
5 3/4 in
Steam Trap Type
Float & Thermostatic

Description

Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Steam Heating, Process Equipment, Body Material Cast Iron, Condensate Capacity 4,300 lb/hr, Configuration H Pattern, Distance Between Inlet and Outlet Port 5 3/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel, Manufacturer Series 44
