  9. Steam Trap, 2-1/2" NPT Connections

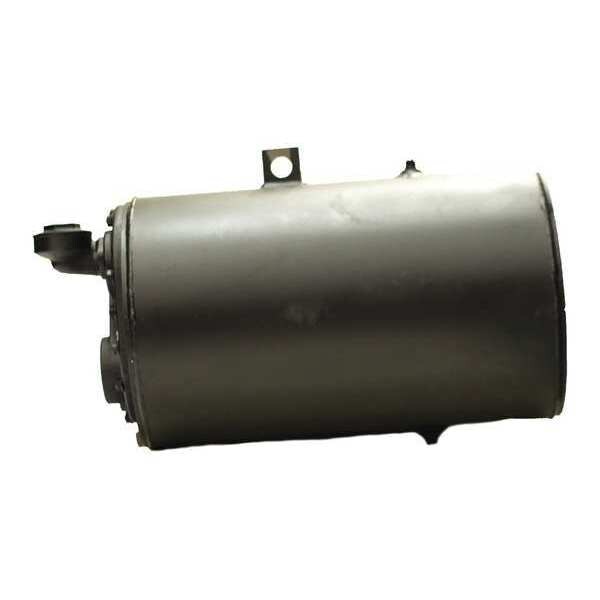

Mepco Steam Trap, 2-1/2" NPT Connections SA30-9125G - main

Steam Trap, 2-1/2" NPT Connections

  • Mfr # SA30-9125G

  • Zoro # G0579980

product price: $4,410.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
2 1/2 in
Max. Operating PSI
125 psi
Disc Material
Stainless Steel
End to End Length
22 7/16 in
Condensate Capacity Lbs/Hr
108,000 lb/hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SA30-9125G
Zoro #
G0579980
UPC #
-
Country of Origin
United States

Dimensions

End to End Length
22 7/16 in
Overall Length
23 5/8 in
Orifice Diameter
1 11/16 in
Port Connection Size
2 1/2 in
Overall Depth
15 3/4 in

Details

Item
Steam Trap
(F)NPT Connections
2 1/2 in
Max. Operating PSI
125 psi
Disc Material
Stainless Steel
Condensate Capacity Lbs/Hr
108,000 lb/hr
Max. Temp.
450 Degrees F
Body Material
Cast Iron
Pipe Configuration
Single Inlet/Outlet
Pressure Air Vent
Releases Air and Non-Condensable Gases that Adversely Affect the Heat Transfer of a Steam System
Trap Position
Horizontal
Type
Float and Thermostatic
NPT Outlet
2 1/2 in
NPT Inlet
2 1/2 in
Downstream PSI Range
0 to 120 psi
NPT Port
2 1/2 in
Application
Steam Lines
Port Connection Type
NPT
Port Connection Gender
Female
Condensate Capacity
108,000 lb/hr
Float Material
Stainless Steel
Number of Ports
2
Steam Trap Type
Float & Thermostatic
Gasket Material
Non-Asbestos Fiber
Operating Temperature - Maximum
450 Degrees F
Allowable Temperature - Minimum
35 Degrees F
Includes Air Vent
Air Vent Included
Configuration
C Pattern
Manufacturer Series
30
Installation Orientation
Horizontal
Includes Strainer
Strainer Not Included
Valve Pin Material
Stainless Steel
Distance Between Inlet and Outlet Port
6 7/8 in
Operating Pressure - Maximum
125 psi
Port Types Included
Inlet, Outlet

Description

Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Steam Lines, Body Material Cast Iron, Condensate Capacity 108,000 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 6 7/8 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series 30, Number of Ports 2, Operating Pressure - Maximum 125 psi
