  5. Finger Safe Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Screw

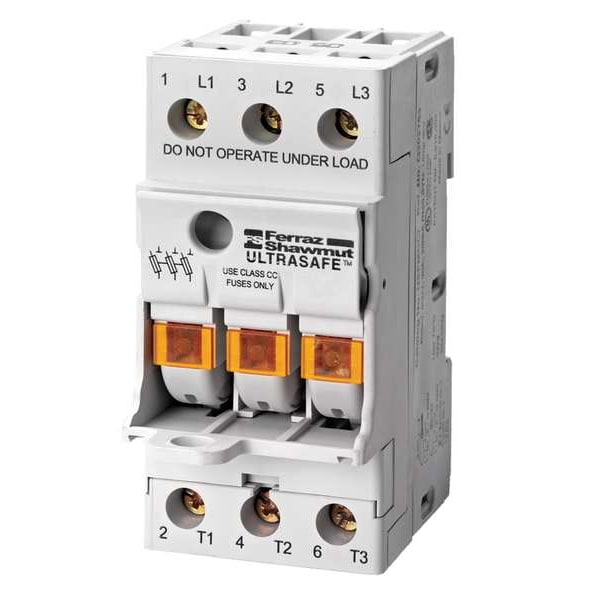

Mersen Finger Safe Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Screw USFMCCI - main
Shop MERSEN

Finger Safe Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Screw

  • Mfr # USFMCCI

  • Zoro # G2119196

product price:  $83.35
/ea
Free Shipping & Returns

Key Features

UL Class
CC
Series
USFMCC
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
USFMCCI
Zoro #
G2119196
UPC #
782001356828
Country of Origin
Mexico

Dimensions

Width
1.77 in
Height
2.27 in
Length
3.54 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Wire Size - Maximum
10 AWG
Overall Width
1.77 in
Wire Size - Minimum
16 AWG
Overall Length
3.54 in
Overall Height
2.27 in
Wire Size
16 to 10 AWG

Details

Item
Finger Safe Fuse Block
UL Class
CC
Series
USFMCC
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Screw
Mounting Style
DIN-Rail
Visual Indication
Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design
Finger-Safe
Body Material
Polyamide
Standards
CSA Certified, UL Listed
For Fuse Series
ATDR, ATMR, ATQR
Fuse Type
Midget
Features
Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc . Applications requiring lock-out / tag-out procedures
Wire Range
16 AWG to 10 AWG
Fits Fuse Type
Class CC
Includes Auxiliary Contact
No
Includes Communication Feature
No
Fits Fuse Block Style
Non-Rejection
Current - Maximum
30 A
Current - Minimum
0 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC

Description

Fuse Block, Fits Fuse Type Class CC, Fuse UL Class CC, 0 to 30 A, Number of Poles 3, 600V AC/DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series ATDR, ATMR, ATQR, CCMR, FNQ-R, KLDR, KLKR, KTK-R, LP-CC, Series USFMCC, Indicating, Non-Rejection, Fuse Block Design Finger-Safe, Wire Range 16 to 10 AWG, Mounting Style DIN Rail, Body Material Polyamide, Connector Type Screw, Height 2.27 in, Width 1.77 in, Length 3.54 in, Standards CSA Certified, UL Listed
