Shop MERSEN

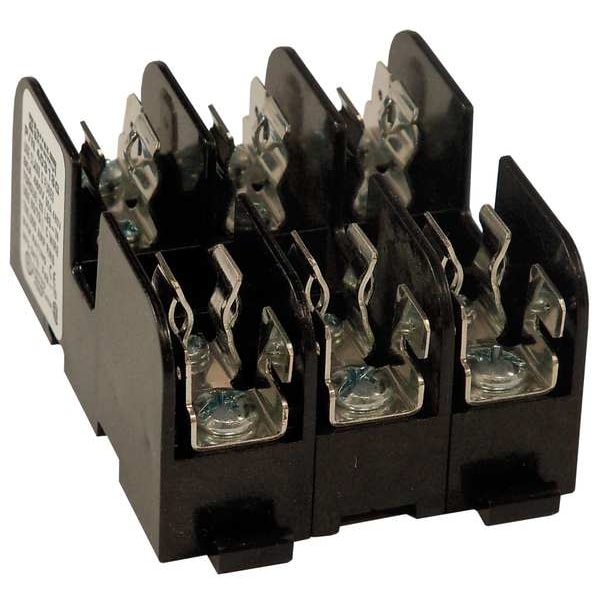

Open Fuse Block, 0 to 30A Amp Range, 480V AC/DC Volt Rating, 3 Poles, Screw with Quick Connect

  • Mfr # 40313G

  • Zoro # G1950182

product price:
$
35.19
/ea

Key Features

UL Class
G
Series
GFB
Voltage Rating
480V AC/DC
Connector Type
Screw with Quick Connect
Mounting Style
Bolt-Down; DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
40313G
Zoro #
G1950182
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
G
Series
GFB
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
480V AC/DC
Connector Type
Screw with Quick Connect
Mounting Style
Bolt-Down; DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
No
Fuse Block Design
Open
Body Material
Polycarbonate
Fuse Holder Code
AJ
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
Features
Adder Block Design
For Fuse Series
AG
Wire Range
14 AWG to 10 AWG
Fits Fuse Type
Class G
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
100 kA
Fits Fuse Block Style
Non-Rejection
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL Listed guide IZLT, File E52283; CSA Certified class 6225, File 32169
Rated Torque (In.-Lb.)
20 lb-in
Installation Mounting
Screw Mount or DIN Rail
Short Circuit Current Rating (SCCR)
100
Fuse Installation Method
Clip-in
Wiring range
Cu #10-14
Short Description
Fuse Bases 480V 30A Class G 3-pole Tin-Plate Copper Screw with Reinforced Clip
Fuse Block or Holder AC Voltage Rating
480VAC
Max Fuse Rating
30 A
Fuse Block or Holder DC Voltage Rating
480VDC
Current - Maximum
30 A
AC Voltage Rating
480 V AC
DC Voltage Rating
480 V DC
Current - Minimum
0 A

Description

Fuse Block, Fits Fuse Type Class G, Fuse UL Class G, 0 to 30 A, Number of Poles 3, 480V AC/DC, For Fuse Size 1 39/64 in L x 13/32 in dia, Compatible Fuse Series AG; SC; SLC, Series GFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 10 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Glass Filled Polycarbonate, Connector Type Quick Connect, Screw, Height 1.45 in, Width 2.39 in, Length 3.05 in, Spring Reinforced Clip No, Features Adder Block Design
