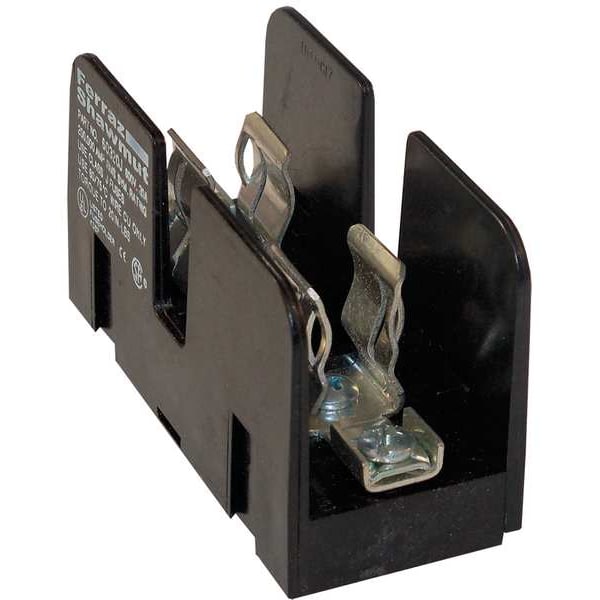

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Pressure Plate

  • Mfr # 60321J
  • Zoro # G0598595
product price:
$
16.15
/ea

Key Features

UL Class
J
Series
JFB
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
60321J
Zoro #
G0598595
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC, 600V DC
Connector Type
Pressure Plate
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
No
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
Features
Space Saver
Fuse Holder Code
Z
For Fuse Series
AJT, A4J, HSJ
Wire Range
14 AWG to 10 AWG
Fits Fuse Type
Class J
Short Circuit Current (KA)
200 kA
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
Max Fuse Rating
30 A
Fuse Installation Method
Clip-in
Short Circuit Current Rating (SCCR)
200
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Installation Mounting
Direct Screw Mount
Short Description
Fuse Bases 600V 30A Class J 1-pole Tin-Plate Copper Pressure Plate
Rated Torque (In.-Lb.)
20 lb-in
Current - Maximum
30 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Minimum
0 A

Dimensions

Wire Size
14 to 10 AWG
Length
4 in
Height
2.12 in
Width
1.65 in
For Fuse Size
2-1/4 in L x 13/16 in dia
Mounting Hole Dia.
1/4 in
Overall Width
1.65 in
Wire Size - Minimum
14 AWG
Overall Height
2.12 in
Overall Length
4 in
Wire Size - Maximum
4 AWG
Wire Rope Length
4 in
Fits Chest Size
Space Saver

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 0 to 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 2 1/4 in L x 13/16 in dia, Compatible Fuse Series A4J; AJT; DFJ; HSJ; JKS; JLS; JTD; JTD-ID; LDFJ; LPJ; LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 4 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Pressure Plate, Height 2.12 in, Width 1.65 in, Length 4 in, Spring Reinforced Clip No
