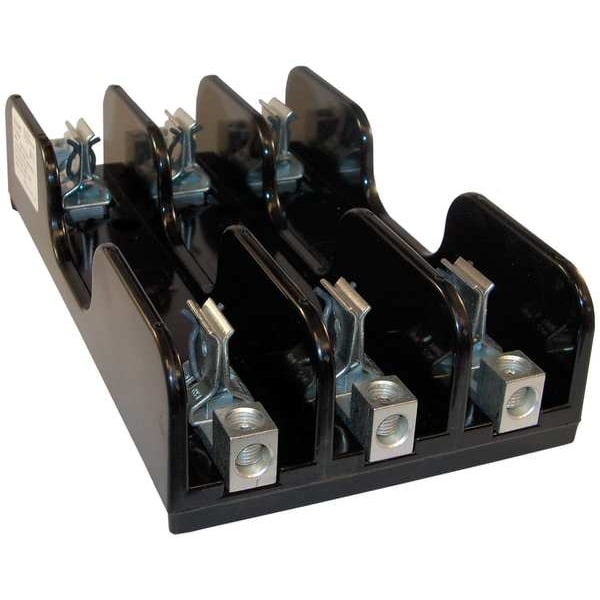

Open Fuse Block, 61 to 100A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Box Lug

  • Mfr # 61038
  • Zoro # G0591464
CAD Available
product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
UL Class
H; K5
Series
2HKRFB
Number of Poles
3
Amp Range
61 to 100A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
61038
Zoro #
G0591464
UPC #
782001664879
Country of Origin
Mexico
CAD Available
Yes
Item
Open Fuse Block
UL Class
H; K5
Series
2HKRFB
Number of Poles
3
Amp Range
61 to 100A
Voltage Rating
600V AC, 600V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Fuse Holder Code
E
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
For Fuse Series
OT, RF, NON, REN
Fits Fuse Type
Class H, Class K5
Wire Range
6 AWG to 2/0 AWG
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
50 kA
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fuse Installation Method
Clip-in
Installation Mounting
Screw Mount or DIN Rail
Short Description
Fuse Bases 600V 100A Class H/K 3-pole Tin-Plate Aluminum Copper Box
Max Fuse Rating
100 A
Rated Torque (In.-Lb.)
120 lb-in
Short Circuit Current Rating (SCCR)
50
DC Voltage Rating
600 V DC
Current - Maximum
100 A
AC Voltage Rating
600 V AC
Current - Minimum
61 A

Dimensions

Wire Size
6 to 2/0 AWG
Height
2.48 in
Length
10.08 in
Width
5.80 in
For Fuse Size
7-7/8 in L x 1-5/16 in dia
Mounting Hole Dia.
1/4 in
Overall Height
2.48 in
Overall Length
10.08 in
Overall Width
5.8 in
Wire Size - Maximum
2/0 AWG
Wire Size - Minimum
6 AWG
Wire Rope Length
10.08 in

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 61 to 100 A, Number of Poles 3, 600V AC/DC, For Fuse Size 7 7/8 in L x 1 5/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series 2HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 to 2/0 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.48 in, Width 5.8 in, Length 10.08 in, Spring Reinforced Clip Yes
