  9. Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Box Lug

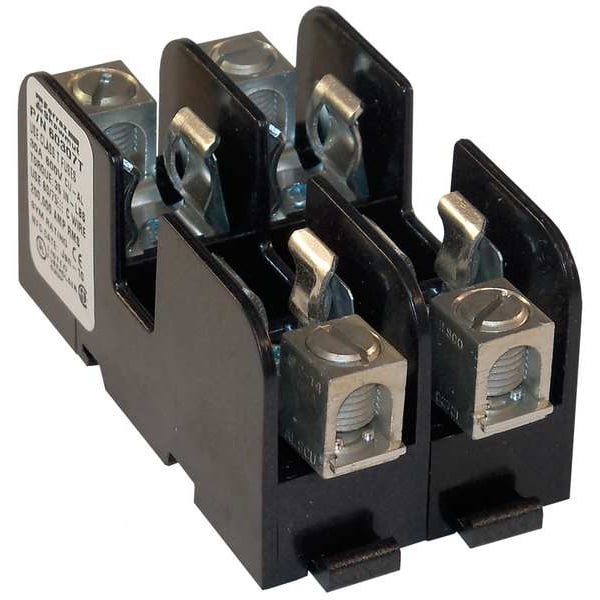

Mersen Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Box Lug 60307T - main

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # 60307T

  • Zoro # G0385086

product price: $23.37
/ea

Key Features

UL Class
T
Series
6TFB
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down; DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
60307T
Zoro #
G0385086
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
14 to 2 AWG
Height
1.56 in
Width
1.84 in
Length
3.13 in
For Fuse Size
1-1/2 in L x 9/16 in dia
Mounting Hole Dia.
0.19 in
Overall Height
1.56 in
Overall Length
3.13 in
Overall Width
1.84 in
Wire Size - Minimum
14 AWG
Wire Size - Maximum
2 AWG

Details

Item
Open Fuse Block
UL Class
T
Series
6TFB
Number of Poles
2
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down; DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
GFPC
Standards
CSA Certified, UL Listed
Features
Adder Block Design
For Fuse Series
A6T
Fuse Type
Industrial
Wire Range
14 AWG to 2 AWG
Fits Fuse Type
Class T
Short Circuit Current (KA)
200 kA
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
35 lb-in
Max Fuse Rating
30 A
Installation Mounting
Screw Mount or DIN Rail
Fuse Installation Method
Clip-in
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Short Circuit Current Rating (SCCR)
200
Short Description
Fuse Bases 600V 30A Class T 2-pole Tin-Plate Aluminum Box with Reinforced Clip
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Maximum
30 A
Current - Minimum
0 A

Description

Fuse Block, Fits Fuse Type Class T, Fuse UL Class T, 0 to 30 A, Number of Poles 2, 600V AC/DC, For Fuse Size 1 1/2 in L x 9/16 in dia, Compatible Fuse Series A6T; JJS; JLLS; LPT, Series 6TFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 1.56 in, Width 1.84 in, Length 3.13 in, Spring Reinforced Clip Yes, Features Adder Block Design
