CAD Viewer & Download Files

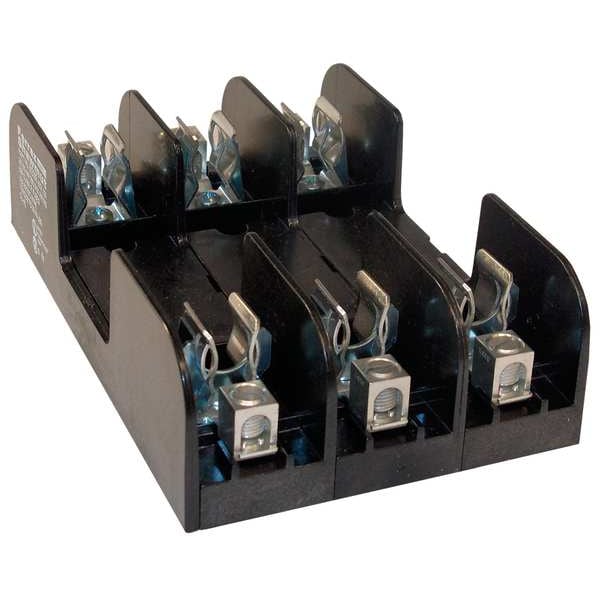

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # 60308R
Zoro # G0640586
CAD Available
product price: $37.69
/eaKey Features
CAD Drawing
UL Class
R
Series
6HKRFB
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
60308R
Zoro #
G0640586
UPC #
782001759599
Country of Origin
Mexico
Dimensions
Width
4.56 in
Length
2 in
Height
7 in
For Fuse Size
5 in L x 13/16 in dia
Mounting Hole Dia.
1/4 in
Overall Width
4.55 in
Overall Length
2 in
Overall Height
7 in
Wire Size - Minimum
14 AWG
Wire Size - Maximum
2 AWG
Wire Size
14 to 2 AWG
Description
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 0 to 30 A, Number of Poles 3, 600V AC/DC, For Fuse Size 5 in L x 13/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series 6HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 7 in, Width 4.55 in, Length 2 in, Spring Reinforced Clip Yes
