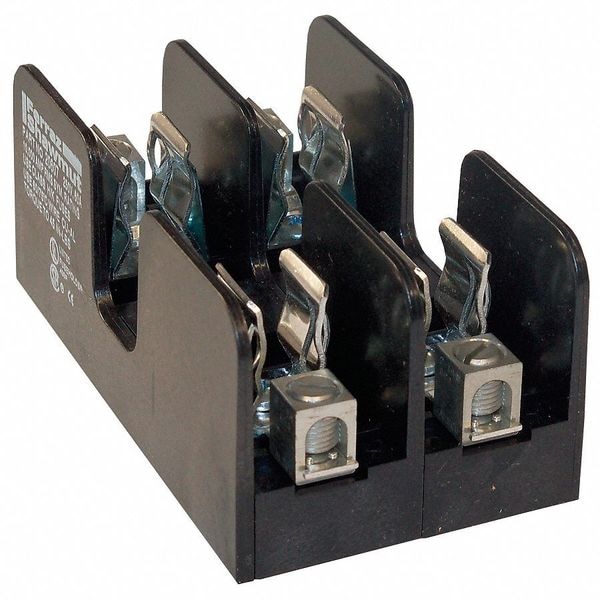

Open Fuse Block, H; K5 UL Class, 250V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # 20607

  • Zoro # G1215051

CAD Available
product price:
$
32.89
/ea

Key Features

CAD Drawing
UL Class
H; K5
Series
2HKRFB
Number of Poles
2
Amp Range
31 to 60A
Voltage Rating
250V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20607
Zoro #
G1215051
UPC #
-
Country of Origin
Mexico
CAD Available
Yes
Item
Open Fuse Block
UL Class
H; K5
Series
2HKRFB
Number of Poles
2
Amp Range
31 to 60A
Voltage Rating
250V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Polycarbonate
For Fuse Series
OT, RF, NON, REN
Fuse Holder Code
K
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
Features
Spring Reinforced Clip
Fits Fuse Type
Class H, Class K5
Wire Range
14 AWG to 2 AWG
Short Circuit Current (KA)
50 kA
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
45 lb-in
Short Circuit Current Rating (SCCR)
50
Short Description
Fuse Bases 250V 60A Class H/K 2-pole Tin-Plate AL Box with Reinforced Clip
Max Fuse Rating
60 A
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fuse Installation Method
Clip-in
Installation Mounting
Direct Screw Mount
Current - Minimum
31 A
AC Voltage Rating
250 V AC
DC Voltage Rating
250 V DC
Current - Maximum
60 A

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 31 to 60 A, Number of Poles 2, 250V AC/DC, For Fuse Size 3 in L x 13/16 in dia, Compatible Fuse Series NLN, NON, OT, REN, RF, RLN, Series 2HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.12 in, Width 2.77 in, Length 4.75 in, Spring Reinforced Clip Yes, Features Spring Reinforced Clip
