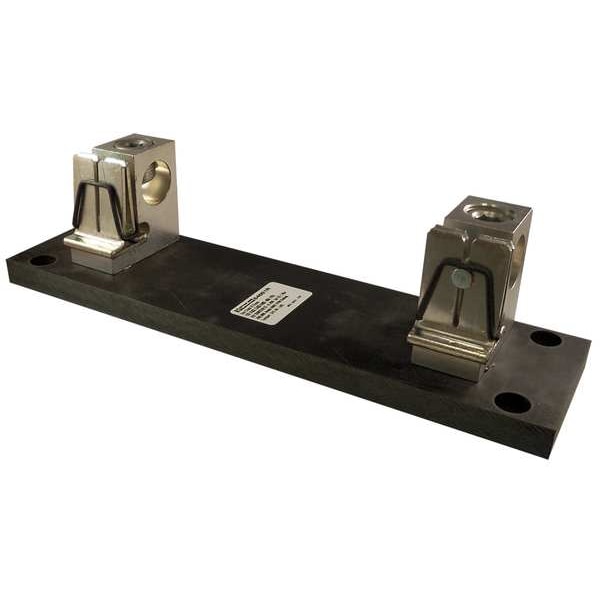

Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 64001
  • Zoro # G3080052

product price:
$
245.94
/ea
Free Shipping & Returns

Key Features

UL Class
H; K5
Series
6HKRFB
Number of Poles
1
Amp Range
201 to 400A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
64001
Zoro #
G3080052
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
H; K5
Series
6HKRFB
Number of Poles
1
Amp Range
201 to 400A
Voltage Rating
600V AC, 600V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
For Fuse Series
OTS, RFS, NOS, RES
Fuse Holder Code
T
Wire Range
250 MCM to 1000 MCM
Fits Fuse Type
Class H, Class K5
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
50 kA
Frequency Range (Hz)
50/60 Hz
Fuse Installation Method
Clip-in
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fits Fuse Block Style
Non-Rejection
Fuse Block or Holder DC Voltage Rating
600VDC
Fuse Block or Holder AC Voltage Rating
600VAC
DC Voltage Rating
600 V DC
AC Voltage Rating
600 V AC
Current - Minimum
201 A
Current - Maximum
400 A

Dimensions

Wire Size
1000 AWG to 250 MCM
Width
4 in
Length
15 in
Height
3-3/4 in
For Fuse Size
11-5/8 in L x 2-19/32 in dia
Mounting Hole Dia.
5/16 in
Overall Width
4 in
Overall Length
15 in
Overall Height
3.75 in
Wire Rope Length
15 in

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 201 to 400 A, Number of Poles 1, 600V AC/DC, For Fuse Size 11 5/8 in L x 2 19/32 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series 6HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 1000 AWG to 250 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 3.75 in, Width 4 in, Length 15 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
