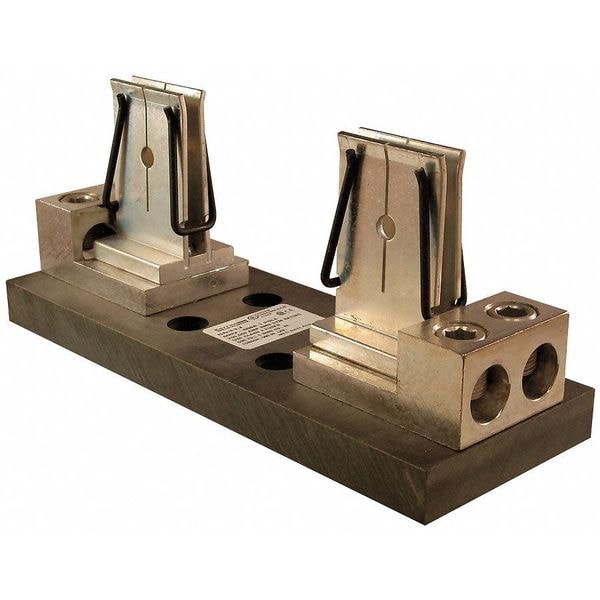

Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 6631J
  • Zoro # G1040977
product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

UL Class
J
Series
JFB
Number of Poles
1
Amp Range
401 to 600A
Voltage Rating
600V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6631J
Zoro #
G1040977
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4.74 in
Length
11 in
Width
4 in
For Fuse Size
8 in L x 2-1/2 in dia, 8 in L x 2-19/32 in dia
Mounting Hole Dia.
5/16 in
Wire Size - Maximum
500 kcmil
Wire Size - Minimum
4 AWG
Overall Height
4.74 in
Overall Width
4 in
Overall Length
11 in
Wire Rope Length
11 in

Details

Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
401 to 600A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Fuse Holder Code
AE
For Fuse Series
AJT, A4J, HSJ
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
Fits Fuse Type
Class J
Wire Range
4 AWG to 500 MCM
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Fuse Installation Method
Clip-in
Fits Fuse Block Style
Non-Rejection
DC Voltage Rating
600 V DC
AC Voltage Rating
600 V AC
Current - Minimum
401 A
Current - Maximum
600 A

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 401 to 600 A, Number of Poles 1, 600V AC/DC, For Fuse Size 8 in L x 2 1/2 in dia, 8 in L x 2 19/32 in dia, Compatible Fuse Series A4J; AJT; DFJ; HSJ; JKS; JLS; JTD; JTD-ID; LDFJ; LPJ; LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 4 AWG to 500 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 4.74 in, Width 4 in, Length 11 in, Spring Reinforced Clip Yes
