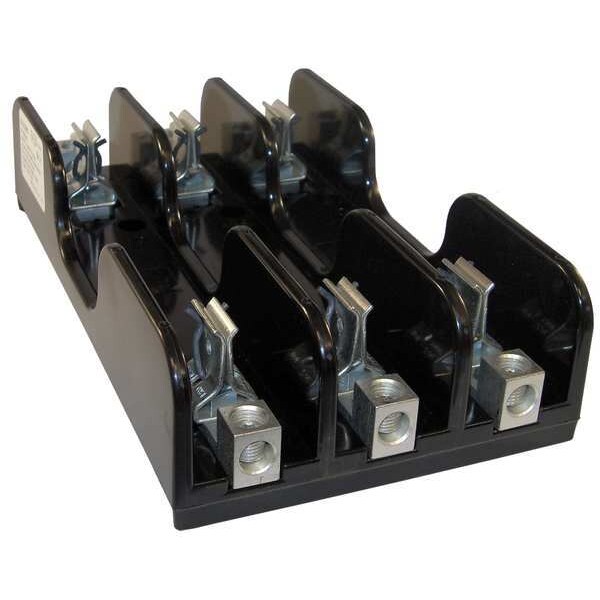

Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug

  • Mfr # 61038R
  • Zoro # G0612796

product price:
$
146.99
/ea
Free Shipping & Returns

Key Features

UL Class
R
Series
6HKRFB
Number of Poles
3
Amp Range
61 to 100A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
61038R
Zoro #
G0612796
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
R
Series
6HKRFB
Number of Poles
3
Amp Range
61 to 100A
Voltage Rating
600V AC, 600V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Fuse Holder Code
R
Standards
CSA Certified, UL Listed
For Fuse Series
A6D-R, A6K-R, TRS-R
Features
Solid State SmartSpot(R) Indicator
Fuse Type
Industrial
Fits Fuse Type
Class R
Wire Range
6 AWG to 2/0 AWG
Short Circuit Current (KA)
200 kA
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Rejection
Rated Torque (In.-Lb.)
120 lb-in
Installation Mounting
Screw Mount or DIN Rail
Short Circuit Current Rating (SCCR)
200
Max Fuse Rating
100 A
Fuse Installation Method
Clip-in
Short Description
Fuse Bases 600V 100A Class R 3-pole Tin-Plate AL Box with Reinforced Clip
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Current - Maximum
100 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Minimum
61 A

Dimensions

Wire Size
6 to 2/0 AWG
Width
5.80 in
Length
10.08 in
Height
2.48 in
For Fuse Size
7-7/8 in L x 1-5/16 in dia
Mounting Hole Dia.
1/4 in
Overall Width
5.8 in
Wire Size - Minimum
6 AWG
Wire Size - Maximum
2/0 AWG
Overall Height
2.48 in
Overall Length
10.08 in
Wire Rope Length
10.08 in
Fits Chest Size
Solid State SmartSpot(R) Indicator

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 61 to 100 A, Number of Poles 3, 600V AC/DC, For Fuse Size 7 7/8 in L x 1 5/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series 6HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 6 to 2/0 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.48 in, Width 5.8 in, Length 10.08 in, Spring Reinforced Clip Yes
