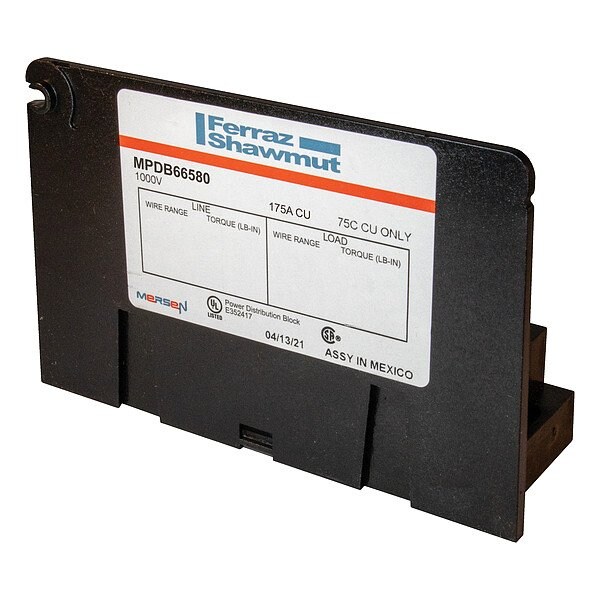

Power Distribution Block, 175 A, 1,000 V
- Mfr # MPDB66580
- Zoro # G123720691
product price:Â
$
179.99
/ea
Free Shipping & Returns
Key Features
For Load Copper Wire Size - Maximum
14 AWG
Load Connections/Pole
8
Terminal Material
Copper
Maximum Current - Copper Conductor
175 A
Power Distribution Block Design
Open
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MPDB66580
- Zoro #
- G123720691
- UPC #
- 0782001451615
- Country of Origin
- Mexico
Dimensions
- For Load Copper Wire Size - Maximum
- 14 AWG
- Overall Length
- 78.2 mm
- Overall Depth
- 82.6 mm
- For Line Copper Wire Size - Minimum
- 14 AWG
- Overall Width
- 43.7 mm
- For Line Copper Wire Size - Maximum
- 2/0 AWG
- Wire Rope Length
- 78.2 mm
- Length
- 78.2 mm
Details
- Load Connections/Pole
- 8
- Terminal Material
- Copper
- Maximum Current - Copper Conductor
- 175 A
- Power Distribution Block Design
- Open
- Line Side Connection Type
- Lug
- UL 94 Flammability Rating
- V-0
- Item
- Power Distribution Block
- Line Connections/Pole
- 1
- Housing Material
- Glass Filled Polycarbonate
- Primary Wire Range
- 2/0-#14
- Standards
- CSA, RoHS, UL, UL 1953
- Load Side Connection Type
- Lug
- Special Features
- Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
- Maximum Voltage
- 1,000 V
- For Conductor Material
- Copper
- Secondary Wire Range
- #2-#14
Description
Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 1,000 V, Mounting Type Surface, Overall Depth 82.6 mm, Overall Length 78.2 mm
