  11. Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 1,500 V DC, DIN Rail, Screw

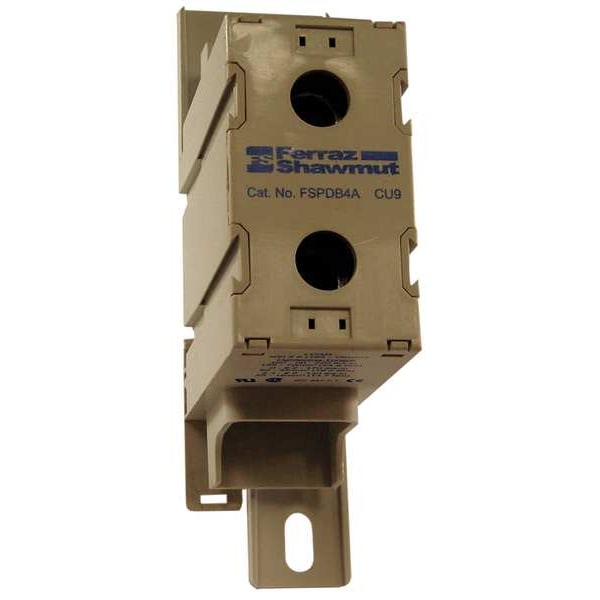

Mersen Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 1,500 V DC, DIN Rail, Screw FSPDB4A - main

Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 1,500 V DC, DIN Rail, Screw

  • Mfr # FSPDB4A

  • Zoro # G2073251

product price: $45.79
/ea

Key Features

Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
335 A
Maximum Voltage
1,500 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSPDB4A
Zoro #
G2073251
UPC #
-
Country of Origin
France

Dimensions

Width
1.54 in
Depth
3.15 in
Length
5.73 in
For Load Copper Wire Size - Minimum
6 AWG
Overall Depth
3.15 in
For Line Aluminum Wire Size - Maximum
400 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Maximum
400 kcmil
For Load Copper Wire Size - Maximum
400 kcmil
Overall Width
1.54 in
For Load Aluminum Wire Size - Maximum
400 kcmil
For Line Aluminum Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Minimum
6 AWG
Overall Length
5.73 in
Hole Diameter (Secondary)
0.87 in
Hole Diameter (Primary)
0.87 in
Product Height
3.15 in

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
335 A
Maximum Voltage
1,500 V DC
Number of Poles
1
Line Connections/Pole
1
Load Connections/Pole
1
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Nylon
Maximum Operating Temperature
80 Degrees C
Mounting Type
DIN Rail, Screw
Standards
CE Component IEC, CSA Class 6228, IEC-947-7-1, 529, 68-2-6, RoHS Compliant, UL 1059
Compatible with Series
FSPDB
Number of Circuits
1
Special Features
Captive Termination Screws, Compact Modularity, Snap On DIN-Rail Mounting
Includes
Cap plugs; Circuit identification markers; End anchors
Short Circuit Rating (Class L)
0 kA
Connector Material
Tin-plated Aluminum
Short Circuit Rating (Standalone)
10 kA
APPLICATIONS
Splicing cables; Splitting primary power into a variety of secondary circuits; Providing a fixed junction tap-off point
Short Circuit Rating (Class RK1)
200 kA
Short Circuit Rating (Class G)
60 kA
Short Circuit Rating (Class RK5)
100 kA
Short Circuit Rating (Class J)
400 kA
Torque Rating (Secondary)
400-2/0 220; 1/0-#2 170; #3-#6 130
Short Circuit Rating (Class CC)
30 kA
Number of Openings per Pole (Secondary)
1
Torque Rating (Primary)
400-2/0 220; 1/0-#2 170; #3-#6 130;
Short Circuit Rating (Class T)
400 kA
Number of Openings per Pole (Primary)
1
UL 94 Flammability Rating
V-0

Description

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 400 kcmil, Load Connections/Pole 1, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 400 kcmil, Maximum Current - Copper Conductor 335 A, Maximum Voltage 1,500 V DC, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 3.15 in
