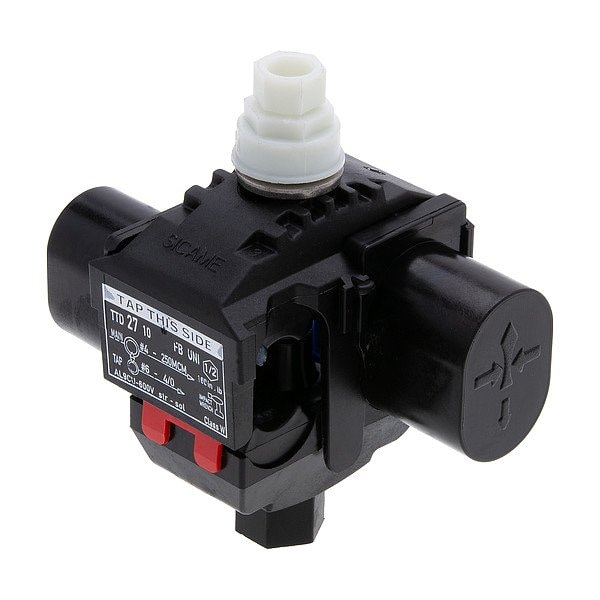

InsulationDisplacementConnector, RunTap
Mfr # IPCS2546
Zoro # G316286850
product price:Â
$
31.75
/ea
Key Features
Connector Type
Run Tap
For Conductor Material
Copper, Aluminum
Color
Black
Maximum Operating Temperature
194 Degrees F
Minimum Run Wire Size
4 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- IPCS2546
- Zoro #
- G316286850
- UPC #
- 662381002242
- Country of Origin
- United States
Dimensions
- Minimum Run Wire Size
- 4 AWG
- Maximum Run Wire Size
- 250 kcmil
- Maximum Tap Wire Size
- 250 kcmil
- Minimum Tap Wire Size
- 4 AWG
Details
- Item
- Insulation Displacement Connector
- Connector Type
- Run Tap
- For Conductor Material
- Copper, Aluminum
- Color
- Black
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- ANSI C119.4, UL 486B
- Maximum Voltage
- 600 V
- Maximum Tap Conductors
- 1
- Wire Type
- Electrical
- Special Features
- Exclusive Turbo Spacer Keeps Tap Side Open While Main Conductor is Being Tightened, No Need to Strip Wire and Totally Insulated
- Resistance Properties
- Corrosion-Resistant, Watertight
- Maximum Run Conductors
- 1
- Compatible with Product Type
- Service Equipment
- Includes
- Connector, Installation Guide
- Fill Material
- No Fill
- Application
- Moisture Resistant
Description
Insulation Displacement Connector, Color Black, Connector Type Run Tap, Insulation Material Not Applicable, Maximum Insulation Diameter Not Applicable, Maximum Temperature 194 Degrees F, Maximum Run Conductors 1, Maximum Run Wire Insulation Diameter Not Applicable, Minimum Run Wire Size 4 AWG, Maximum Run Wire Size 250 kcmil, Maximum Tap Conductors 1, Maximum Tap Wire Insulation Diameter Not Applicable, Minimum Tap Wire Size 4 AWG, Maximum Tap Wire Size 250 kcmil, Maximum Voltage 600 V
