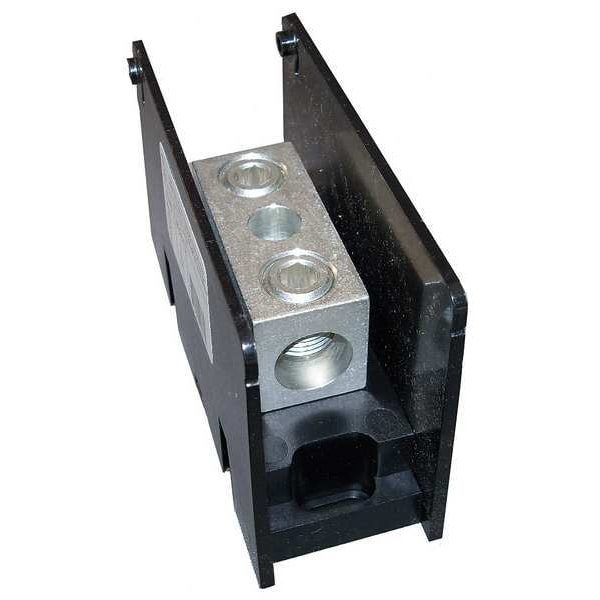

Power Distribution Block, Open, 1 Pole, 310 A Copper, 1,000 V AC/DC, Screw

  • Mfr # MPDB67001

  • Zoro # G5258495

CAD Available
product price:
$
59.15
/ea

Key Features

CAD Drawing
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
310 A
Maximum Current - Aluminum Conductor
310 A
Maximum Voltage
1,000 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MPDB67001
Zoro #
G5258495
UPC #
-
Country of Origin
Mexico

Dimensions

Length
5 in
Depth
3.25 in
Width
1.85 in
Overall Depth
3.25 in
For Load Aluminum Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Maximum
350 kcmil
Overall Width
1.85 in
Overall Length
5 in
For Line Aluminum Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Maximum
350 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Minimum
6 AWG
Product Height
3.25 in
Hole Diameter (Primary)
0.75 in
Hole Diameter (Secondary)
0.75 in
Line Side Stud Size
11/16-16 x .88"
Load Side Stud Size
11/16-16 x .88"
Wire Rope Length
5 in

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
310 A
Maximum Current - Aluminum Conductor
310 A
Maximum Voltage
1,000 V AC/DC
Number of Poles
1
Line Connections/Pole
1
Load Connections/Pole
1
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Glass-Filled Polycarbonate
Maximum Operating Temperature
80 Degrees C
Mounting Type
Screw
Standards
CSA Class 6228-01, RoHS Compliant, UL 1953
Housing Color
Black
Number of Circuits
1
UL 94 Flammability Rating
V-0
Includes
Polycarbonate Safety Covers
Number of Openings per Pole (Primary)
1
Short Circuit Rating (Class L)
400 kA
Short Circuit Rating (Standalone)
10 kA
Number of Openings per Pole (Secondary)
1
Connector Material
Tin-plated Aluminum
APPLICATIONS
Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
Short Circuit Rating (Class RK1)
200 kA
Short Circuit Rating (Class J)
400 kA
Short Circuit Rating (Class CC)
30 kA
Torque Rating (Secondary)
350-#6 275
Torque Rating (Primary)
350-#6 275
Short Circuit Rating (Class T)
400 kA
Short Circuit Rating (Class G)
60 kA
Short Circuit Rating (Class RK5)
100 kA
CAD Available
Yes
Secondary Wire Range
6 AWG to 350 MCM
Primary Wire Range
6 AWG to 350 kcmil

Description

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.25 in, Overall Length 5 in, Overall Width 1.85 in
