  11. Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw

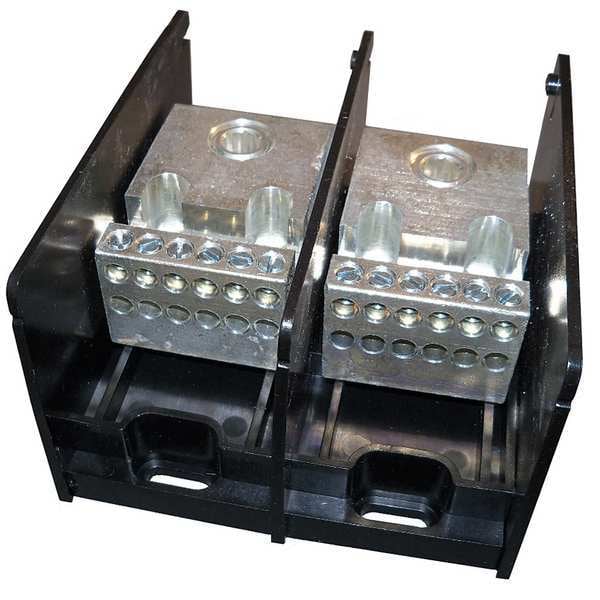

Mersen Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw MPDB69082 - main

Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw

  • Mfr # MPDB69082

  • Zoro # G5258547

product price: $118.48
/ea
Sold in multiples of 9 for $1,066.32
Free Shipping & Returns

Key Features

Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Aluminum Conductor
350 A
Maximum Voltage
1,000 V AC/DC
Line Connections/Pole
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MPDB69082
Zoro #
G5258547
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
3.55 in
Width
5.32 in
Length
5.7 in
For Line Copper Wire Size - Maximum
500 kcmil
For Line Aluminum Wire Size - Maximum
500 kcmil
Overall Length
5.7 in
For Line Aluminum Wire Size - Minimum
4 AWG
For Load Aluminum Wire Size - Minimum
14 AWG
Overall Depth
3.55 in
For Load Copper Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Minimum
4 AWG
Overall Width
5.31 in
For Load Copper Wire Size - Maximum
4 AWG
For Load Aluminum Wire Size - Maximum
4 AWG
Hole Diameter (Secondary)
0.27 in
Product Height
3.55 in
Hole Diameter (Primary)
0.88 in
Load Side Stud Size
5/16-24 x .38"
Line Side Stud Size
13/16-16 x 1.06"

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
380 A
Maximum Current - Aluminum Conductor
350 A
Maximum Voltage
1,000 V AC/DC
Number of Poles
2
Line Connections/Pole
1
Load Connections/Pole
12
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Glass-Filled Polycarbonate
Maximum Operating Temperature
80 Degrees C
Mounting Type
Screw
Standards
CSA Class 6228-01, RoHS Compliant, UL 1953
UL 94 Flammability Rating
V-0
Number of Circuits
2
Housing Color
Black
Includes
Polycarbonate Safety Covers
Short Circuit Rating (Class RK5)
100 kA
Short Circuit Rating (Class CC)
30 kA
Short Circuit Rating (Standalone)
10 kA
Connector Material
Tin-plated Aluminum
APPLICATIONS
Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
Number of Openings per Pole (Secondary)
12
Short Circuit Rating (Class T)
400 kA
Torque Rating (Secondary)
#4-#8 40; #10-#14 35
Short Circuit Rating (Class L)
400 kA
Short Circuit Rating (Class RK1)
200 kA
Short Circuit Rating (Class J)
400 kA
Number of Openings per Pole (Primary)
1
Short Circuit Rating (Class G)
60 kA
Torque Rating (Primary)
500-#4 500

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 2, Overall Depth 3.55 in
