Shop MERSEN

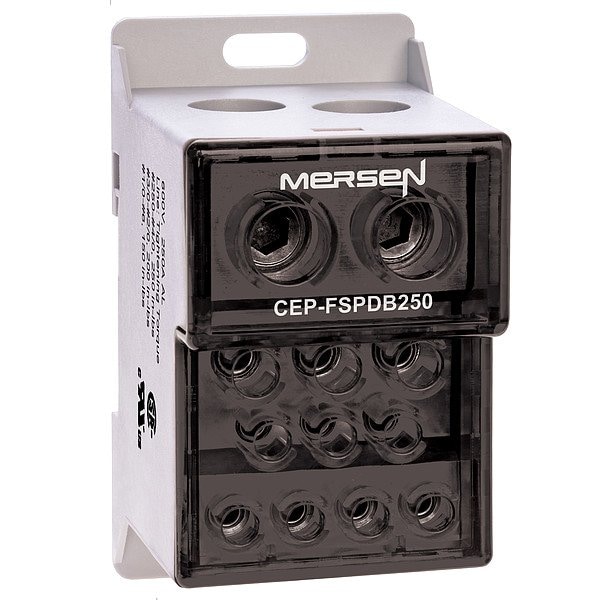

PowerDistributionBlock, 250A, 600V, 1Poles

  • Mfr # CEP-FSPDB250

  • Zoro # G121692730

product price:  $69.19
/ea

Key Features

Load Connections/Pole
10
Number of Poles
1
Special Features
Translucent Covers Allow Visual Inspection of Wire Termination Points and Wiring Configurations
UL 94 Flammability Rating
V-0
Load Side Connection Type
Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEP-FSPDB250
Zoro #
G121692730
UPC #
0782001499068
Country of Origin
Mexico

Dimensions

For Line Aluminum Wire Size - Minimum
250 kcmil
Wire Rope Length
95 mm
Overall Depth
62.5 mm
Overall Width
51.6 mm
For Line Copper Wire Size - Maximum
250 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Load Copper Wire Size - Maximum
14 AWG

Details

Load Connections/Pole
10
Number of Poles
1
Special Features
Translucent Covers Allow Visual Inspection of Wire Termination Points and Wiring Configurations
UL 94 Flammability Rating
V-0
Load Side Connection Type
Lug
Power Distribution Block Design
Finger-Safe
Housing Material
Glass Filled Polycarbonate
Secondary Wire Range
#6-#14 + #4-#14 + #2-#14
Standards
RoHS, UL 600V
For Conductor Material
Aluminum
Maximum Voltage
600 V
Maximum Current - Aluminum Conductor
205 A
Terminal Material
Aluminum
Line Connections/Pole
2
Item
Power Distribution Block
Primary Wire Range
250-#6
Line Side Connection Type
Lug
Maximum Current - Copper Conductor
250 A

Description

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 250 kcmil, Load Connections/Pole 10, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 250 A, Maximum Voltage 600 V, Mounting Type DIN-Rail, Surface, Number of Poles 1
