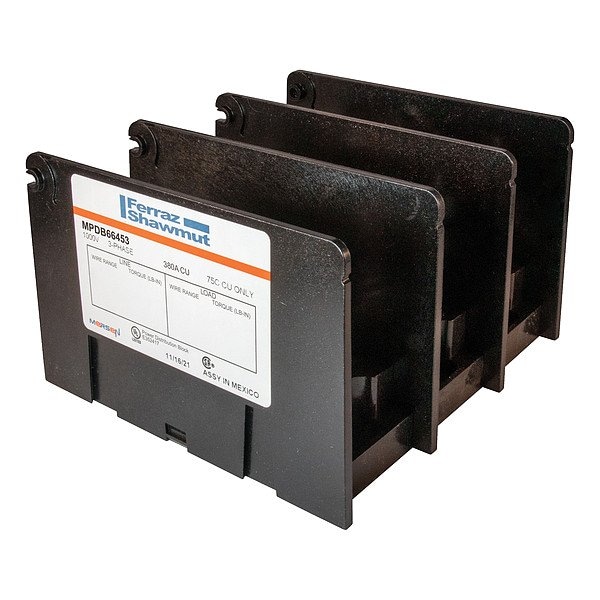

PowerDistributionBlock, 380A, 1000V, 3Poles
Mfr # MPDB66453
Zoro # G523720680
product price:Â $237.99
/ea
Free Shipping & Returns
Key Features
Load Connections/Pole
4
Overall Depth
82.6 mm
For Conductor Material
Copper
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Overall Width
134.1 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
MPDB66453
Zoro #
G523720680
UPC #
0782001454302
Country of Origin
Mexico
Dimensions
Overall Depth
82.6 mm
Overall Width
134.1 mm
For Line Copper Wire Size - Maximum
500 kcmil
For Line Copper Wire Size - Minimum
4 AWG
Overall Length
78.2 mm
For Load Copper Wire Size - Maximum
6 AWG
Details
Load Connections/Pole
4
For Conductor Material
Copper
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Primary Wire Range
500-#4
Number of Poles
3
Load Side Connection Type
Lug
Standards
CSA, RoHS, UL, UL 1953
Secondary Wire Range
350-#6 and #2-#14
Power Distribution Block Design
Open
UL 94 Flammability Rating
V-0
Line Side Connection Type
Lug
Terminal Material
Copper
Line Connections/Pole
1
Item
Power Distribution Block
Housing Material
Glass Filled Polycarbonate
Maximum Voltage
1,000 V
Maximum Current - Copper Conductor
380 A
Description
Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 6 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 3, Overall Depth 82.6 mm
