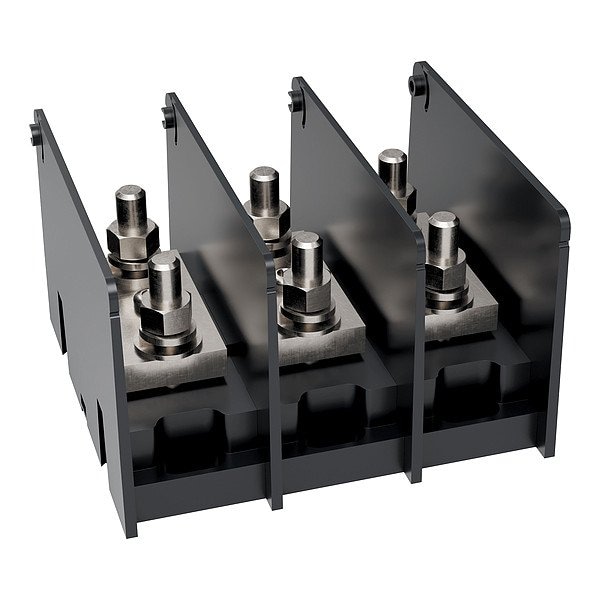

PowerDistributionBlock, 400A, 1000V, 3Poles
Mfr # MPDB66263SS
Zoro # G023720678
product price:Â
$
146.99
/ea
Free Shipping & Returns
Key Features
Line Side Stud Size
3/8 16 x 1 1/8 in
Power Distribution Block Design
Open
Overall Width
134.1 mm
Maximum Current - Copper Conductor
400 A
Load Side Stud Size
3/8 16 x 1 1/8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MPDB66263SS
- Zoro #
- G023720678
- UPC #
- 0782001456894
- Country of Origin
- Mexico
Dimensions
- Line Side Stud Size
- 3/8 16 x 1 1/8 in
- Overall Width
- 134.1 mm
- Load Side Stud Size
- 3/8 16 x 1 1/8
- Overall Length
- 78.2 mm
- Overall Depth
- 82.6 mm
- Wire Rope Length
- 78.2 mm
- Length
- 78.2 mm
Details
- Power Distribution Block Design
- Open
- Maximum Current - Copper Conductor
- 400 A
- Item
- Power Distribution Block
- Line Side Connection Type
- Stud
- Load Connections/Pole
- 1
- Number of Poles
- 3
- Maximum Voltage
- 1,000 V
- Secondary Wire Range
- 3/8 16 x 1 1/8
- UL 94 Flammability Rating
- V-0
- Primary Wire Range
- 3/8 16 x 1 1/8
- Load Side Connection Type
- Stud
- Standards
- CSA, RoHS, UL, UL 1953
- Special Features
- Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
- For Conductor Material
- Copper
- Line Connections/Pole
- 1
- Housing Material
- Glass Filled Polycarbonate
- Terminal Material
- Copper
Description
Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 1, Line Side Stud Size 3/8 16 x 1 1/8 in, For Line Copper Wire Size - Minimum Not Applicable, For Line Copper Wire Size - Maximum Not Applicable, Load Connections/Pole 1, Load Side Stud Size 3/8 16 x 1 1/8, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum Not Applicable, Maximum Current - Copper Conductor 400 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 3
