Shop SCHNEIDER ELECTRIC

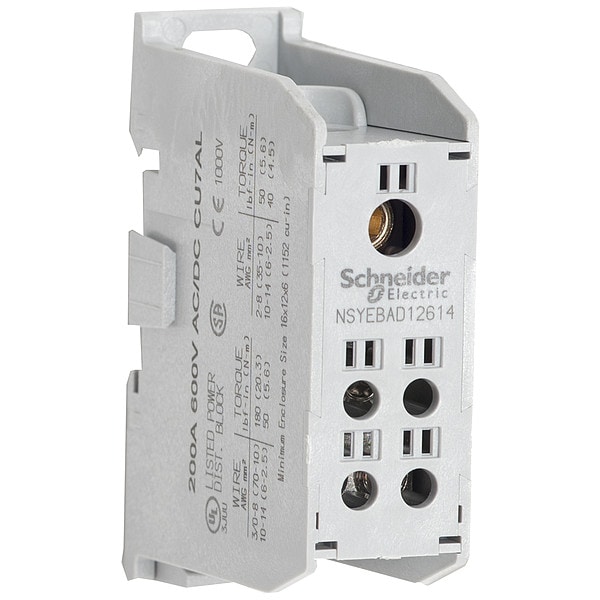

Power Distribution Block, Finger-Safe, 1 Pole, 200 A Copper, 600 V AC/DC, DIN Rail

  • Mfr # NSYEBAD12614

  • Zoro # G505848791

product price:  $68.15
/ea

Key Features

Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
200 A
Maximum Current - Aluminum Conductor
155 A
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYEBAD12614
Zoro #
G505848791
UPC #
785901482840
Country of Origin
Korea, Republic of

Dimensions

Depth
2.71 in
Width
1.21 in
Length
3.61 in
Overall Depth
2.71 in
For Line Aluminum Wire Size - Maximum
3/0 AWG
For Load Aluminum Wire Size - Maximum
2 AWG
Overall Width
1.21 in
For Channel Size
35 mm
For Line Copper Wire Size - Minimum
14 AWG
For Load Aluminum Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Minimum
6 AWG
Overall Length
3.61 in
For Load Copper Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Maximum
3/0 AWG
For Load Copper Wire Size - Maximum
2 AWG
Wire Strip Length
Load 0.69 in bottom; Line 0.88 in; Load 0.69 in top

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
200 A
Maximum Current - Aluminum Conductor
155 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
Line Connections/Pole
1
Load Connections/Pole
4
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Thermoplastic
Maximum Operating Temperature
257 Degrees F
Mounting Type
DIN Rail
Standards
CE Certified, CSA Certified, CSA File 70361 Class 6228 01, NEMA, REACH Regulation, RoHS Compliant, UL Listed, UL Listed File E323110 CCN QPQS, WEEE
Minimum Operating Temperature
-40 Degrees F
Number of Circuits
5
Housing Color
Gray
Special Features
Enables Ganging of the Blocks to Create Multipole Configurations According to Application Requirements, Enclosed IEC Versions of our NEMA 9080 Power Distribution Blocks, Finger-Safe, One Pole Modular Units with an Interlocking Dovetail Feature, Power Terminal Blocks are Finger Safe from the Front According to IP20, This Block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with Fuses and Circuit Breakers, This Block is UL Listed and CSA Certified and RoHS Compliant
Short Circuit Current Rating
100 kA
Features
Halogen free product; Mercury Free
Color
Gray
Secondary Wire Range
14 to 2 AWG (Copper), 6 to 2 AWG (Aluminum)
Primary Wire Range
14 to 3/0 AWG (Copper), 6 to 3/0 AWG (Aluminum)
UL 94 Flammability Rating
V-0

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 3/0 AWG, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 200 A, Maximum Voltage 600 V, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 2.71 in
